UAV Turbojets

All Products

Military-Tech Sourcing Complany

Navigating Modern Frontiers with Precision

Wholesale supplies of world-renowned brands and manufacturing under your own name (OEM)

VIEW ALL PRODUCTS

Best Sellers

Tiny1-C Thermal Imaging

LWIR thermal module core

TX2501 CNC 6.2G 2.5W VTX

High-power FPV video transmitter

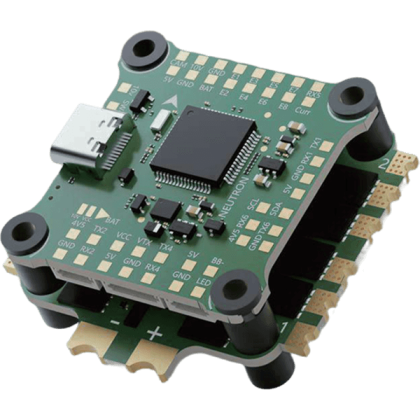

NEURON 55 / 70A F4

Four-in-one FPV Drone Stack

Next-Gen Turbojets 2026

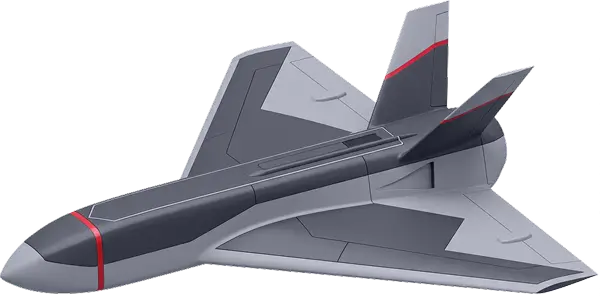

Golden Owl-90

The Golden Owl-90 is a high-endurance, heavy-lift subsonic multi-purpose turbojet UAV designed for extended operations in complex tactical environments. Engineered with a durable aerospace-grade structure, it offers a robust maximum takeoff weight of 90 kg and advanced stealth characteristics. Reaching a maximum velocity of 160 m/s and a range of 600 km, the Golden Owl-90 provides an internationally advanced operational platform with rapid deployment capabilities and exceptional mission versatility.

Airframe Dimensions Length: 2.4m | Wingspan: 2.3m
MTOW (Max Takeoff Weight) 90 kg
Operational Range 600 km
Endurance 2.5 hours loitering time
Propulsion System High-Output Turbine Engine (40~50 DaN Static Thrust)
Fuel Grade & Capacity Jet-A1 / Kerosene | 55L Internal Tank
Service Ceiling 4000 m (MSL)
Velocity Profile Cruise: 252 km/h | Vne (Max): 540 km/h (150 m/s)
Payload Integration 20 kg (Internal/External)
Sensor Compatibility Kinetic Warheads, EO/IR Gimbal Seekers
Deployment System Catapult Launch
Structure Materials 7075 Aviation Aluminum & Carbon Composites

SW400pro 400N Micro Turbine

Specifications

Parameter Value Parameter Value
Engine diameter 148mm ECU battery 2S Lipo
Engine length 341mm Power Battery 3S Lipo
Engine weight 3413g Operating temp -25°C ~ 40°C
Complete set weight 3897g Telemetry RS-232/RS-422
Thrust at STP 400N PPM input 700-2400 ms
RPM range 33,000 – 95,000 Maintenance cycle 25 – 40Hrs
Fuel consumption at max RPM 1000g/min (1250ml/min) Fuel type Diesel or Jet A1
Mass flow at max RPM 0.67 Kg/S Lubricating oil Diesel 3% / Kerosene 5%
Pressure ratio at max RPM 3.8 Bar Starting method Direct fuel startup
Max exhaust temp 700°C Auto-Restart function Yes
Max ejection acceleration 10 G
Max operating speed 300m/S (1080Km/Hr)

MORE TURBOJETS

Thermal Cameras Catalog 2026

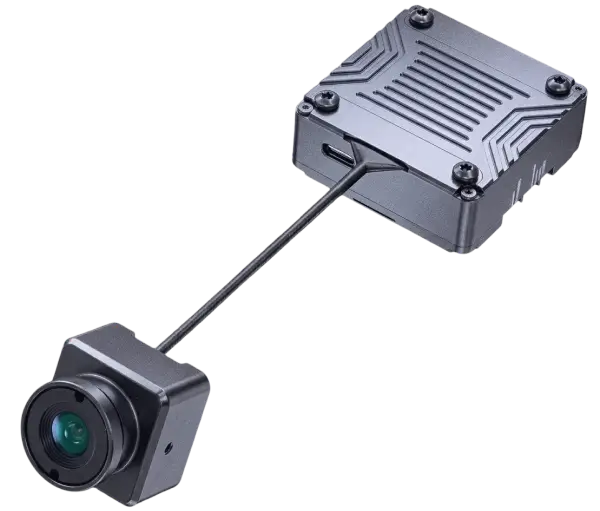

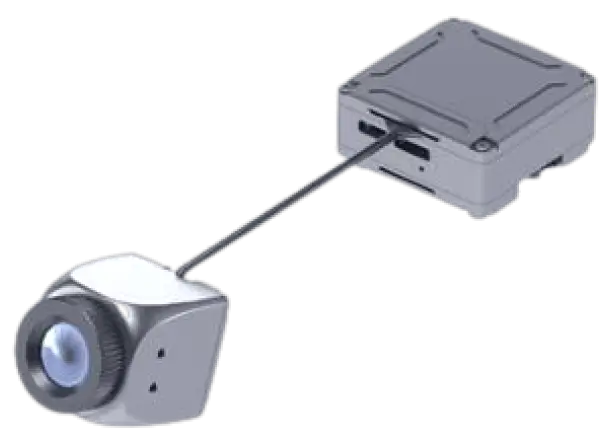

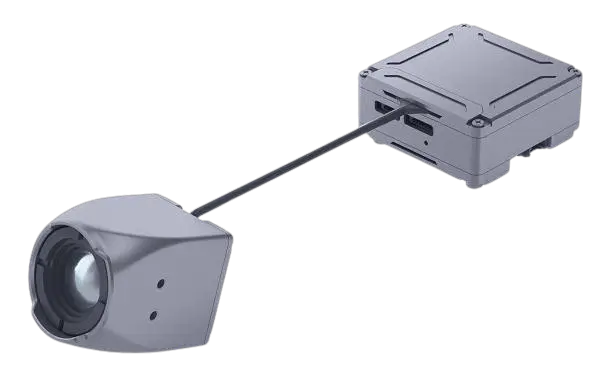

CADDX Eclipse 002SL

Resolution: 256*192
Wavelength Range: 8~14μm
Lens: F1.0/4mm
FOV: 50°(H)*37.2°(V)*62.3°(D)
Size: Camera 19.5*19.5*20.8mm,
Box 33.5*33.5*16.5mm

Support CVBS output

CADDX Eclipse 003SL

Resolution: 320*240
Wavelength Range: 8~14μm
Lens: F1.0/4mm
FOV: 50°(H)*37.2°(V)*62.3°(D)
Size: Camera 19.5*19.5*20.8mm,
Box 33.5*33.5*16.5mm

Support CVBS & USB dual output, native resolution: 256*192

CADDX Eclipse 005SL

Resolution: 576*432
Wavelength Range: 8~14μm
Lens: F1.0/5.1mm
FOV: 48°(H)*34°(V)*59°(D)
Size: Camera 22*22*28.43mm, Box 33.5*33.5*16.5mm

Support CVBS & USB dual output, Native Resolution: 384*288

CADDX Eclipse 006SH

Resolution: 640*512
Wavelength Range:8~14μm
Lens: F1.0/9.1mm
FOV: 48.3°(H)*38.6°(V)*66°(D)
Size: Camera 22*22*28.43mm, Box 33.5*33.5*16.5mm

Support CVBS output

CADDX Eclipse 009SH

Resolution: 960*768
Wavelength Range: 8~14μm
Lens: F1.0/9.1mm
FOV: 48.3°(H)*38.6°(V)*66°(D)
Size: Camera 22*22*28.43mm, Box 33.5*33.5*16.5mm

Support CVBS & USB dual output, native resolution is 640×512

CADDX Eclipse 009SE

Resolution: 960*768
Wavelength Range: 8~14μm
Lens: F1.0/9.1mm
FOV: 48.3°(H)*38.6°(V)*66°(D)
Size: Camera 22*22*28.43mm, Box 33.5*33.5*16.5mm

Support CVBS & USB dual output, native resolution is 640×512

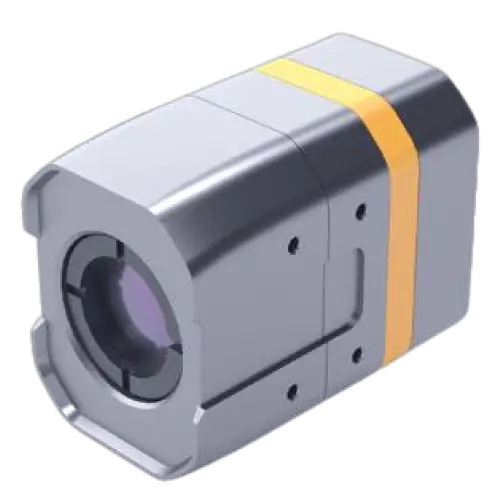

CADDX Eclipse 009CA

Resolution: 960*768
avelength Range: 8~14μm
Lens: F1.0/9.1mm
FOV: 48°(H)*38.4°(V)*64.9°(D)
Size: 35.2*26.2*46.4mm

Support CVBS & USB dual output, native resolution is 640×512

CADDX IRC-384CA

Resolution: 384*288
Wavelength Range: 8~14μm
Lens: F1.0/4mm
FOV: 65.5°(H)*49.0°(V)*83°(D)
Size: 35.2*26.2*48.5mm

Support CVBS output

CADDX IRC-640CA

Resolution: 640*512
Wavelength Range: 8~14μm
Lens: F1.0/9.1mm
FOV: 48°(H)*38.4°(V)*64.9°(D)
Size: 35.2*26.2*43.2mm

Support CVBS output

CADDX Eclipse Nano 9

Resolution: 960*768
Wavelength Range: 8~14μm
Lens: F1.0/9.1mm
FOV: 48.3°(H)*38.6°(V)*66°(D)
Size: 17.3*17.3*28.66mm

Support CVBS & USB dual output, native resolution is 640×512

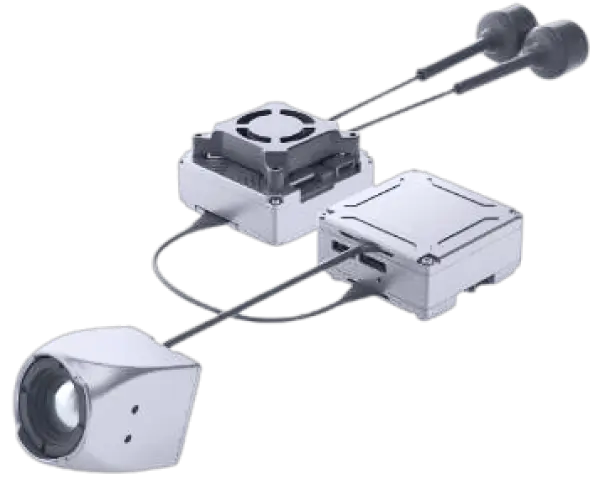

CADDX Eclipse Avatar 009HD-2W

Digital thermal camera 960*768+HD 2WAvatar GT VTXkit

CADDX Eclipse Ascent 009HD-4W

Digital thermal camera 960*768+HD 4WAscent GT Pro VTXkit

GNSS Anti-Jamming & Spoofing Solutions

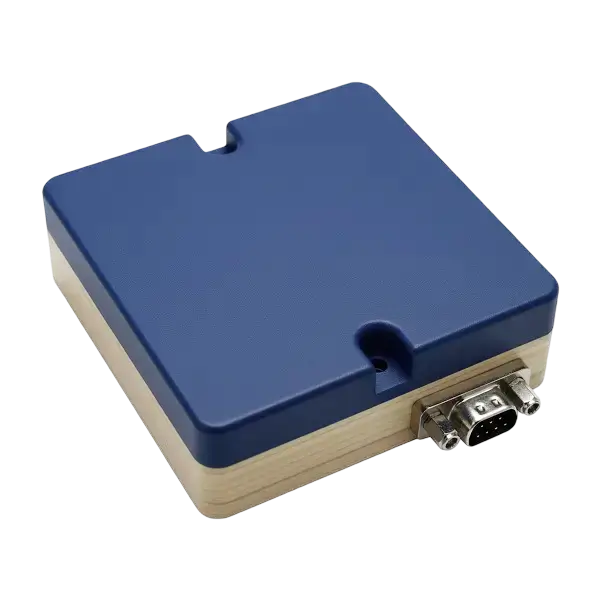

YH60 Ultra-Lightweight Anti-Jamming CRPA for Drones

Ultra-lightweight at <120g and highly compact (60x60mm). Ideal for small UAVs, ensuring stable navigation by suppressing 3 interference sources.

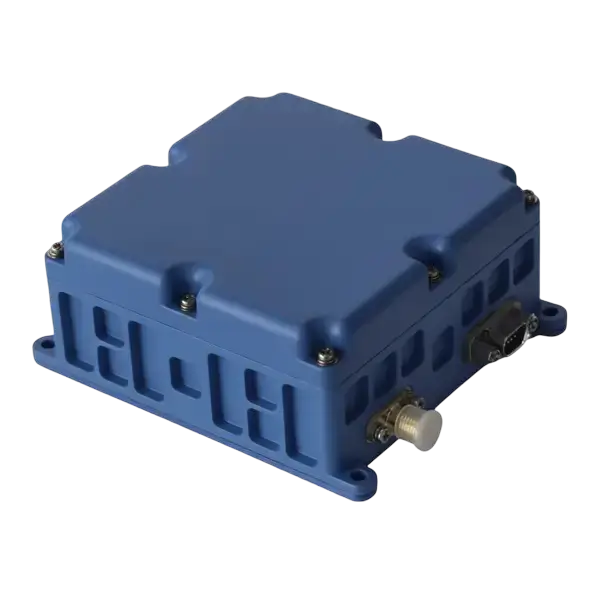

YH80 Compact GPS/GLONASS Anti-Jamming CRPA

A compact, dedicated GPS L1/GLONASS L1 anti-jamming system. Resists 3 broadband interference sources for high-precision vehicle positioning.

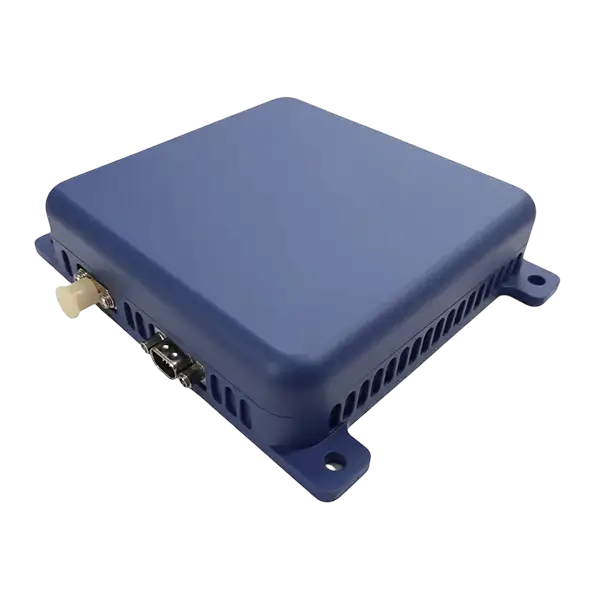

YH100H Lightweight Anti-Jamming CRPA for UAVs

Lightweight at <300g for UAVs. This 4-channel system protects against 3 interference sources across BDS, GPS, and GALILEO constellations.

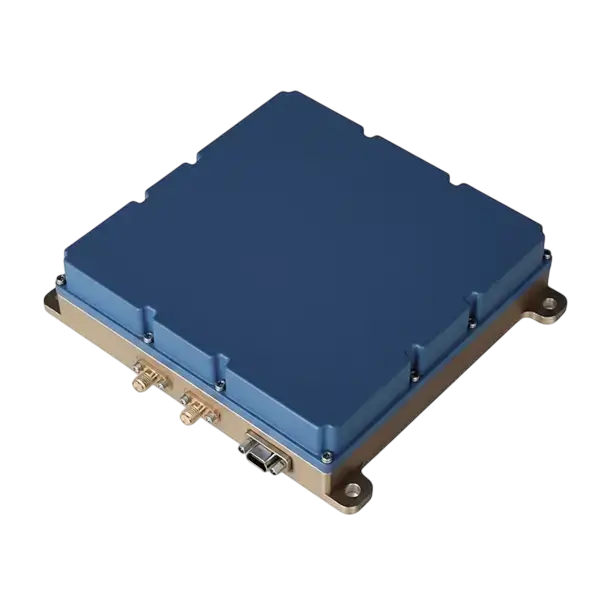

YH163 4-Channel GNSS Anti-Jamming System

Assured PNT with robust 4-channel protection for BDS, GPS & GALILEO. Counters 3 interference sources to maintain precise, stable navigation.

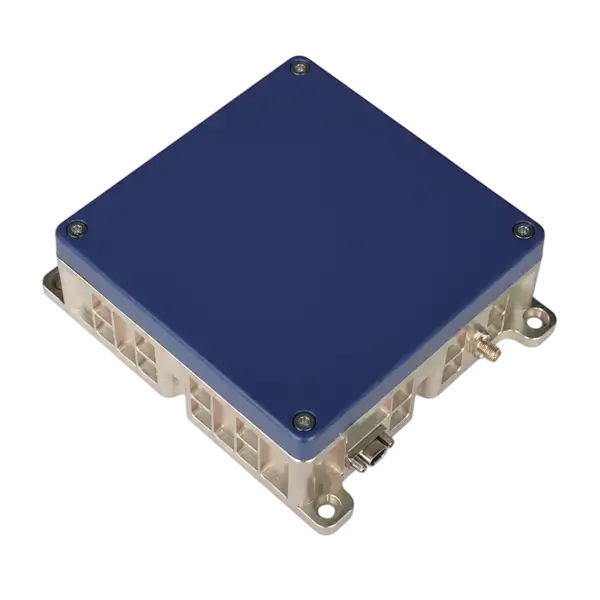

YH168 Multi-Constellation CRPA Anti-Jamming System for Assured PNT

Quad-band, 4-channel system accesses all major constellations (BDS, GPS, Galileo, GLONASS) for maximum satellite availability and robust PNT.

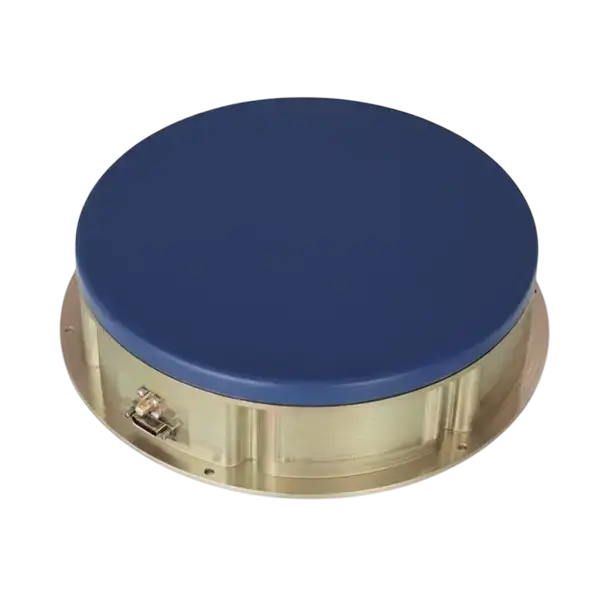

YH181 7-Channel CRPA for Extreme NAVWAR Resilience

Extreme NAVWAR resilience for critical environments. This 7-channel system is built to counter an impressive 6 simultaneous interference sources.

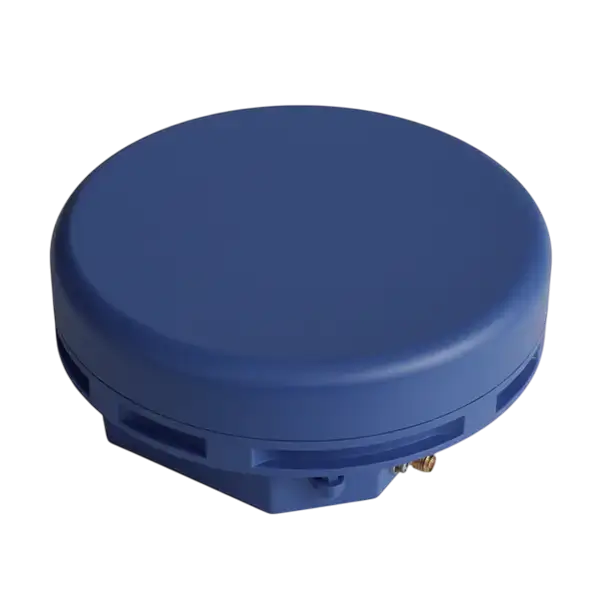

YH836 8-Channel CRPA for High-Threat NAVWAR Environments

High-threat solution for NAVWAR environments. Features 8 channels and counters a maximum of 7 simultaneous broadband interference sources.

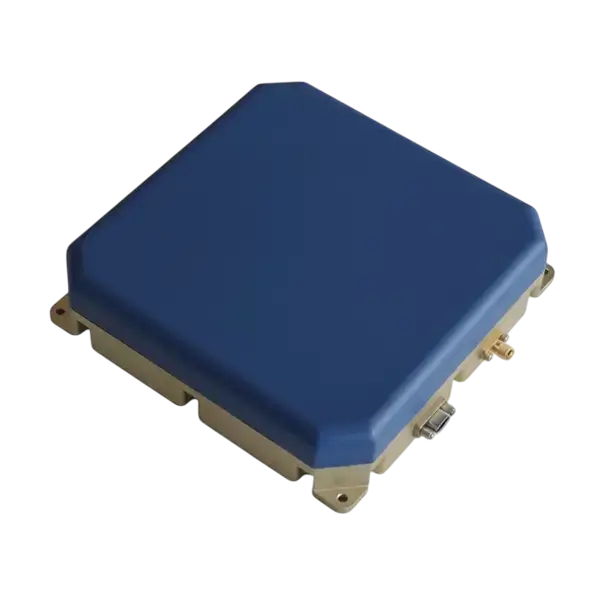

YH839 Dual-Frequency (L1/L2) 4-Channel CRPA System

Dual-frequency (L1/L2) 4-channel system for enhanced accuracy and ionospheric error correction while resisting 3 interference sources.

ST100-12V-4VH-Anti-jamming Antenna Module

A compact anti-jamming module for UAVs. Provides 360° coverage & up to 85 dBc suppression. Lightweight (<300g) and PIXHAWK compatible.

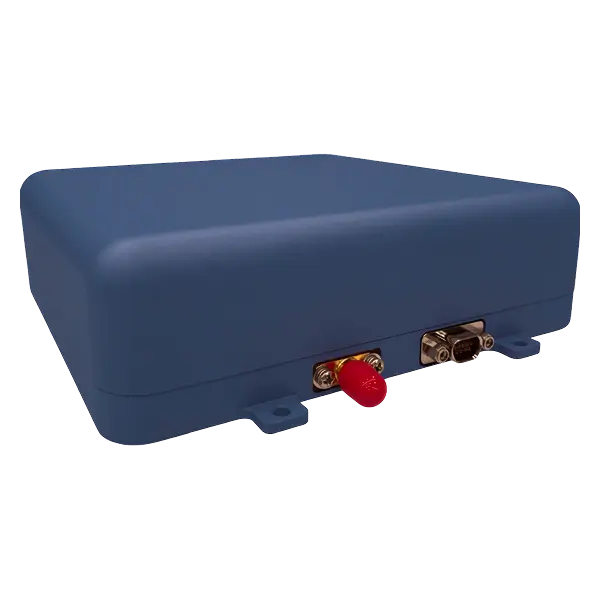

3.0-GNSS-12V Anti-Jam Module

12V anti-jamming module with NEMA0183 output. Provides full-frequency GNSS support and actively mitigates interference for secure navigation.

4.0-TX-8CH-DF-WG-DT Anti-Jam

Ultra-compact ≤500g, 8-channel dual-frequency BeiDou B1/B3 GNSS PNT with uni-dir anti-jamming >95dBc, power ≤17W — ideal for drones.

3.0pro-GNSS-12V Anti-Jam Module

Pro-grade 12V anti-jamming for defense/logistics. Enhanced full-frequency GNSS interference mitigation with reliable NEMA0183 data output.

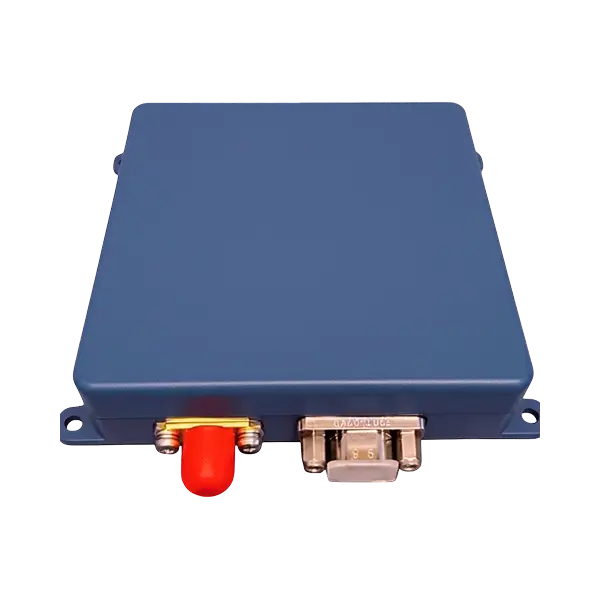

ST65-4CH Anti-Jam Module

Ultra-mini 65×65×21 mm, ≤130 g anti-jamming GNSS module for BeiDou B1/GPS L1; unidirectional suppression ≥95 dBc, power ≤6 W.

GPS Anti-jamming Antenna

Dual-channel BD2-B1/GPS L1 anti-jamming receiver, 40 dB gain, -65 dBm, TNC I/O, DC5V/5W, -40–85 °C, 119×76×19 mm, 270 g — air/land/sea use.

BD2-B3 Anti-interference Antenna

Dual-channel BD2-B1/GPS L1 anti-jamming receiver, 40 dB gain, -65 dBm, TNC I/O, DC5V/5W, -40–85 °C, 119×76×19 mm, 270 g — air/land/sea use.

VIEW ALL PRODUCTS

Enhanced Night Vision

Jerry-FB Fusion Thermal Enhanced Night Vision Binocular

Advanced night vision fusion merges binocular 3D and thermal imaging, enabling quick target recognition and threat identification. Paired with external devices, it supports rapid target acquisition and augmented reality, enhancing situational awareness.

Jerry-31 Binocular Night Vision Goggle

Jerry-31 binocular night vision goggle adopts super second-generation low light tubes. With reliable and superior performance, compact size, and ultra-light weight, it provides high-definition images to effectively improve situational awareness and self-protection capabilities.

Spike-B Series On-board Night Vision Automotive Thermal Imager

Spike-B combines infrared and low-light cameras for dual-light fusion, intelligent recognition, and hazard alerts. It detects vehicles at 250m, humans at 200m, with 640×512 resolution and a 45.5°×30° FOV. Operating in -40°C to 60°C with ≤10W power, it features IP67 encapsulation, a 50Hz frame rate, and interference-resistant video, supporting four input channels.

Jerry-F Enhanced Night Vision Goggle

The Jerry-F Enhanced Night Vision Goggle combines I² and thermal imaging to overcome I² limitations and widen usage. It aligns the FOV and reticle with its imagery using sighting tools, aiding quick target capture and discreet aiming.

Jerry-14 Monocular Night Vision Goggle

Monocular night vision goggle utilizes advanced second-generation low-light tubes. Known for its reliable and exceptional performance, this compact and extremely lightweight device offers high-definition imagery, significantly enhancing situational awareness.

Jerry-C Clip-on Thermal Imager

The Jerry-C Clip-on Thermal Imager is designed for environments where I² and CCD night vision devices are limited. It acts as a thermal imaging enhancer, quickly upgrading existing devices with clip-on fusion functionality and multiple imaging modes. Jerry-C boosts night vision awareness and provides tactical advantage by enhancing target identification.

Jerry-YM Monocular Head-mounted Thermal Imager

The monocular head-mounted thermal imager is a high-performance infrared observation device designed for individual soldiers to conduct nighttime investigations and observations.

Tyke-M6 Middle-type Thermal Sight

Tyke-M6 Middle-type Thermal Sight is equipped with a 640×512 infrared detector and a 45mm lens. It has a wide field of view and a very long observation distance while providing excellent thermal images.

Tyke-H6 Heavy-type Thermal Sight

The Tyke-H6 Thermal Sight is designed for 12.7 mm rifles, machine guns, and sniper rifles with Picatinny rails. It enables precise aiming at living targets up to 1,800 m and light vehicles up to 2,100 m. Using thermal imaging, it detects and identifies targets, while its built-in ballistic calculator ensures accuracy. The device features a high-definition OLED screen, offering user-friendly operation.

Tyke-CH6 Heavy-type Clip-on Thermal Sight

Tyke-CH6 Heavy-type Clip-on Thermal Sight is an economical thermal sight, equipped with a 640×512 thermal detector and matched with 75mm lenses. It can be used alone or in combination with a daylight scope, to provide excellent thermal images.

Tom-B Five Optical Channels Multi-function Binoculars

Tom-B Five Optical Channels Binoculars is a compact device combining infrared, low-light, visible light, and laser. It features a location module, compass, and laser rangefinder. With image fusion, it supports day/night observation and target detection, capturing images/videos with real-time upload.

Tom-HDB Three Optical Channels HD Binoculars

The Tom-HDB Binoculars feature a 6.2 MP day channel and 0.8 MP thermal imaging. With a positioning module, compass, and laser rangefinder, it ensures accurate target location. Compact, efficient, and climate-adaptable, it supports target info upload.

High Quality Scouter Laser Rangefinder-Scouter X Type

The Spotter Pocket Laser Rangefinder offers ranging, angle measurement, real-time data display, power status, and data transmission. It supports GPS/Bluetooth/Wi-Fi and works handheld or with a tripod. Compact, lightweight, and pocket-sized.

Thermal Cameras

Caddx 384 Thermal Imaging FPV Camera

The Caddx 384 Thermal Imaging FPV Camera features a 384×288 vanadium oxide detector for FPV drones, search and rescue, and wildlife monitoring. It offers an 8-14μm range, 50Hz frame rate, low power use, and PAL output. Compact (26.2×35.2×48.8mm) and 73.5g, it works in -20℃ to 60℃.

Caddx 640 Thermal Imaging FPV Camera

The Caddx 640 Thermal Imaging FPV Camera delivers 640×512 resolution with a 50Hz frame rate and ≤40mK NETD for clear imaging in tough conditions. Compact (27×37×40mm) and 60.5g, it’s ideal for drones in search and rescue, surveillance, and inspections.

Tiny1-C Thermal Imaging Module

The Tiny1-C features a 256×192 uncooled vanadium oxide detector for industrial and medical uses. Operating in the 8-14μm range at 25Hz, it delivers quality imaging with low power use. Compact at 13.2×13.2×8.5mm, it supports temperature measurement from -15℃ to 150℃ and works in -40℃ to 80℃.

Thermal Camera U01-256

The U01-256 Thermal Camera delivers 256×192 resolution, 12μm pixel size, and ≤50mK NETD at 25°C. It features a 25.46°×19.23° FOV, 25Hz frame rate, and <10ms thermal time constant. Detection reaches 642m for humans and 944m for vehicles, with recognition at 160m and 236m. Ultra-light at 22g, it measures 24×24×27.92mm.

Thermal Camera U02-384

The U02-384 Thermal Camera provides 384×288 resolution, 17μm pixel size, and ≤40mK NETD at 25°C. It offers a 39.46°×30.11° FOV, 50Hz frame rate, and <12ms thermal time constant. Detection reaches 606m for humans and 892m for vehicles, with recognition at 151m and 223m. Compact at 65g, it measures 28.4×28.4×41.1mm.

Thermal Camera U03-640

The U03-640 Thermal Camera offers 640×512 resolution, 12μm pixel size, and ≤40mK NETD at 25°C. With a 45.76°×37.31° FOV, 50Hz frame rate, and <12ms thermal time constant, it detects humans up to 859m and vehicles up to 1263m, with recognition at 214m and 315m. Compact at 65g, its dimensions are 28.4×28.4×42.45mm.

VIEW ALL PRODUCTS

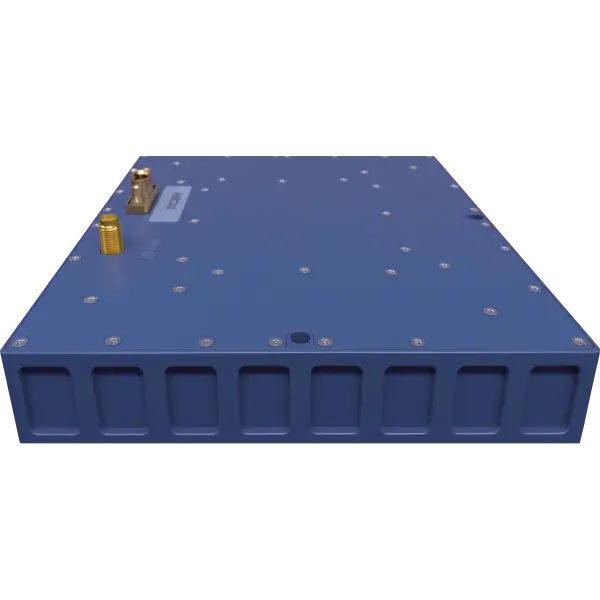

16-Channel Antenna Arrays for Professional Communication Systems

We manufacture multi-element 16-channel antenna arrays designed for high-precision communication, telemetry and navigation systems. Our engineering approach ensures stable performance, enhanced interference resistance and reliable signal reception in demanding operating environments. The solution is suitable for integrators, developers of unmanned platforms, industrial communication systems and OEM partners.

Key Advantages:
• Spatial and phased signal distribution
• High resistance to interference and active jamming
• Modular architecture and compatibility with multiple communication standards
• Customizable interfaces, connectors and mounting options
• Engineering support for integration and testing

Our antenna arrays can be supplied as serial production modules or OEM-customized units, accompanied by full technical documentation and optional integration support.

Compliance & Responsible Use
We supply component-level products intended for lawful and regulated applications. Our company strictly follows export control requirements, conducts partner due diligence, and adheres to a responsible-use policy for all delivered equipment.

Feature Details
Input Voltage (VCC) 15–40V (Pins A, G)
Ground (GND) Pins B, M
Main Connector J30J-21Zk (Power, Data, Upgrade)
Interface 0 (RS232) Satellite receiver serial port
Pins: H (TX), F (RX), E (GND)
Interface 1 Pins: C (TX), D (RX), R (GND)
Interface 2 Pins: P (TX), N (RX), V (GND)
Interface 3 Pins: L (TX), U (RX), K (GND)
RF Interface 2 x TNC-K output ports
Reserved Pin S (NC - No Connection)
GNSS Receiver Built-in U-blox, supports standard output formats
Operating Temperature -40°C to +75°C
Storage Temperature -50°C to +90°C
Weight ≤ 3 kg

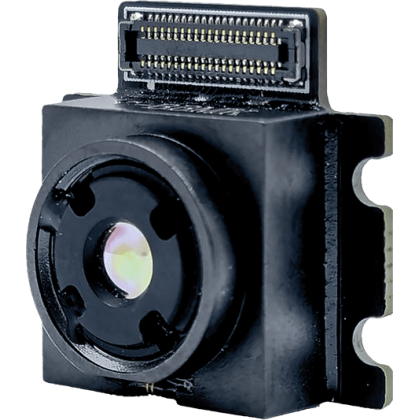

Tiny1-C Thermal Imaging Module

The Tiny1-C is a compact, energy-efficient long-wave infrared (8–14μm) thermal imaging module, ideal for industrial temperature measurement, security monitoring, and IoT applications. It delivers outstanding imaging performance with flexible configurations.

Feature Details
Image Resolution 256×192 pixels
Pixel Pitch 12μm
Temperature Range -15°C to 150°C
Lens Options 2.0mm, 3.2mm, 4.3mm
Field of View (FOV) 90°×65° to 40°×30°
Operating Temperature -40°C to 80°C

Compact, lightweight, and designed for seamless integration, the Tiny1-C is perfect for industrial, security, and IoT applications.

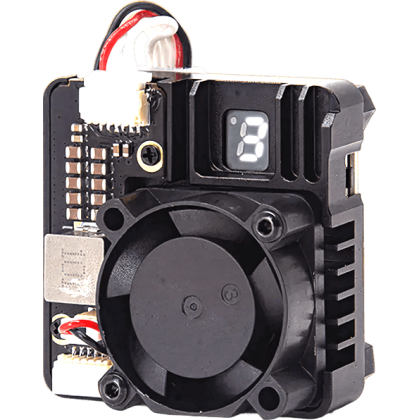

TX2501 CNC 6.2G 2.5W VTX

Skyzone TX2501 CNC is a long-range 64-channel FPV video transmitter that spans 4.990–6.184 GHz and outputs up to 2.5 W, cooled by a built-in fan and CNC-machined heatsink.

Feature Details
Frequency Range 4.990 – 6.184 GHz
Channels 64 CH (8 bands × 8 channels)
Output Power 25 mW / 800 mW / 1600 mW / 2500 mW (peaks ≈3 – 3.5 W)
Cooling System CNC aluminum heatsink + fan
Control Method Button or IRC Tramp; LED segment display
Input Voltage 9 – 26 V DC
Antenna Connector MMCX
Mounting Pattern 30.5 × 30.5 mm (M3)
Dimensions 38.8 × 38.6 × 22.5 mm
Weight 27.5 g
Package Contents VTX, cable, MMCX-to-SMA cable, screw set

VIEW ALL PRODUCTS

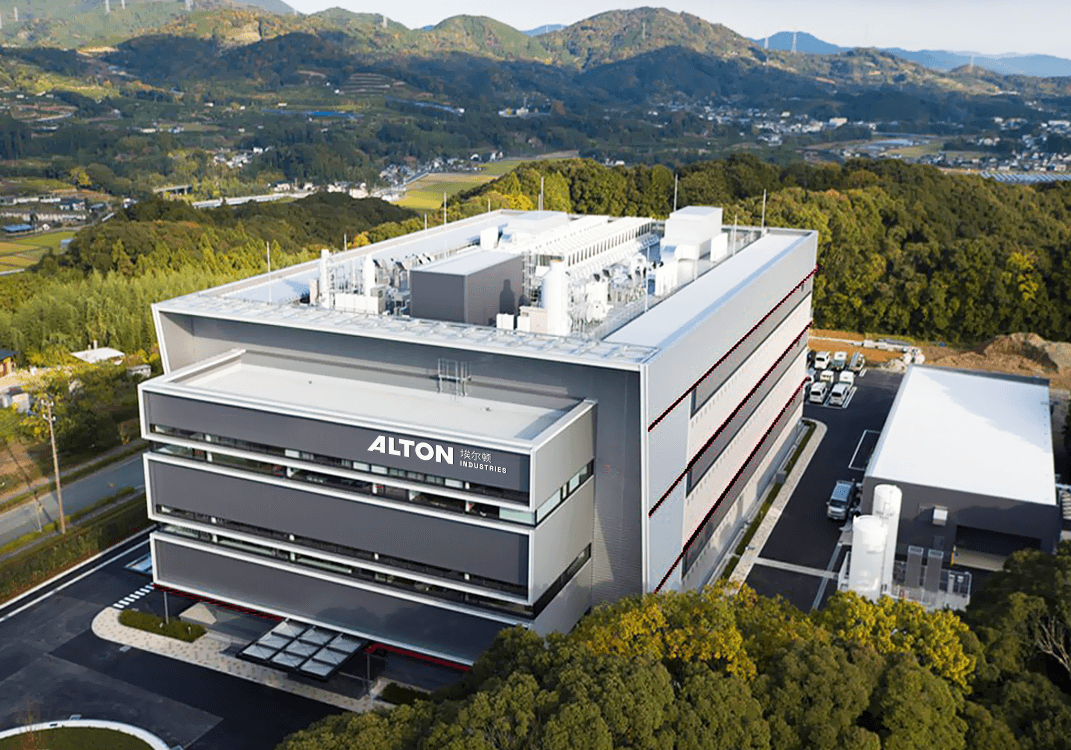

About Alton

Alton-Industries., Ltd. was established in 2008, is a professional engaged in RF micro-wave power amplifier, active devices, passive devices and subsystems research and development, production and sales of the company. Relying on the academic research team of well-known universities, the company has established an innovative research and development team with doctoral and master’s talents, and continues to attract outstanding talents in the industry and outstanding students from famous universities to expand the team.

The company has about 20 authorized invention patents in microwave devices, circuits, antennas, etc. Applications include radar, electronic countermeasures, aerospace, navigation and other military fields, but also widely used in microwave communications, mobile communications and other civilian markets. The products cover RF and microwave devices, components and antennas, among which, the active products include high-power solid-state microwave power amplifier, low noise amplifier, transceiver components, up and down frequency converter, frequency source, etc. Passive products include microwave filters, diplexers, power splitters, couplers, power synthesizers, etc. The antenna products are dominated by various ultra-wideband and high-gain horn antennas. The product operating frequency covers VHF, UHF, L-band, S-band, C-band, X-band, Ku-band and so on.

manufacturing_10

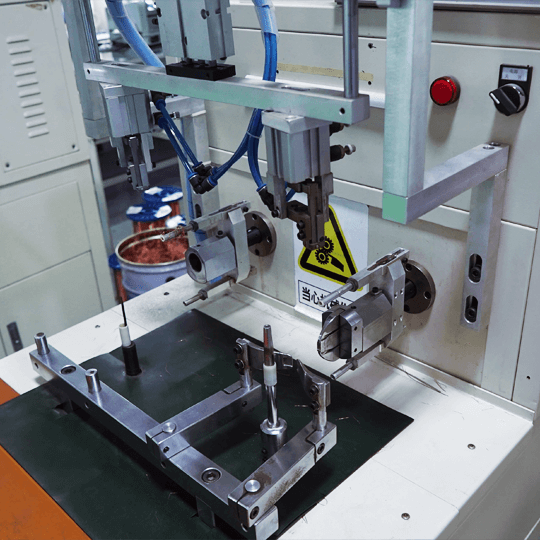

manufacturing_06

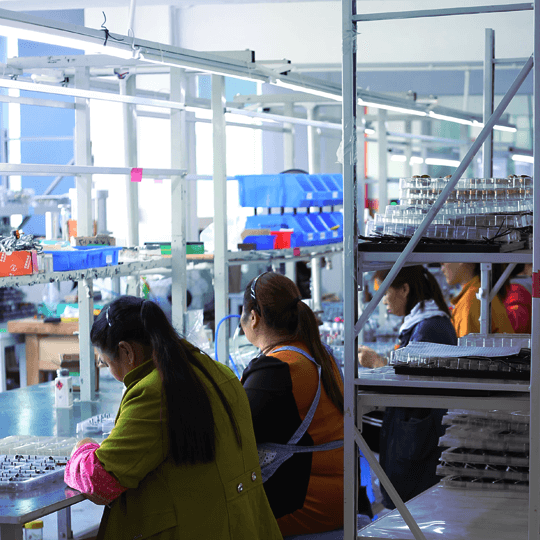

manufacturing_09
manufacturing_05
manufacturing_04

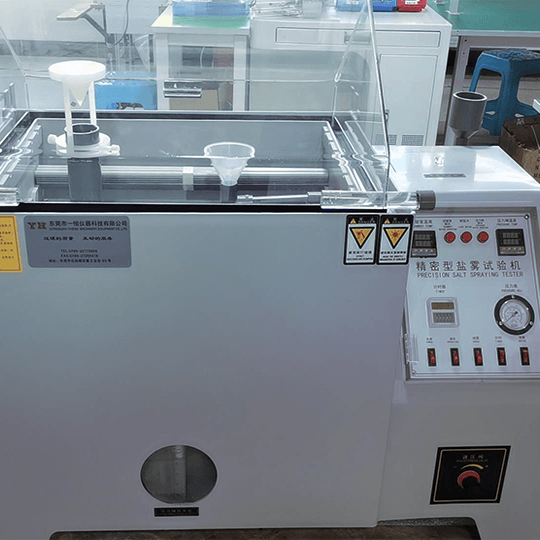

manufacturing_03
