Military-Tech Sourcing Complany
Navigating Modern Frontiers with Precision
Wholesale supplies of world-renowned brands and manufacturing under your own name (OEM)
Enhanced Night Vision
Jerry-FB Fusion Thermal Enhanced Night Vision Binocular
Advanced night vision fusion merges binocular 3D and thermal imaging, enabling quick target recognition and threat identification. Paired with external devices, it supports rapid target acquisition and augmented reality, enhancing situational awareness.
Jerry-31 Binocular Night Vision Goggle
Jerry-31 binocular night vision goggle adopts super second-generation low light tubes. With reliable and superior performance, compact size, and ultra-light weight, it provides high-definition images to effectively improve situational awareness and self-protection capabilities.
Jerry-F Enhanced Night Vision Goggle
The Jerry-F Enhanced Night Vision Goggle combines I² and thermal imaging to overcome I² limitations and widen usage. It aligns the FOV and reticle with its imagery using sighting tools, aiding quick target capture and discreet aiming.
Jerry-14 Monocular Night Vision Goggle
Monocular night vision goggle utilizes advanced second-generation low-light tubes. Known for its reliable and exceptional performance, this compact and extremely lightweight device offers high-definition imagery, significantly enhancing situational awareness.
Jerry-C Clip-on Thermal Imager
The Jerry-C Clip-on Thermal Imager is designed for environments where I² and CCD night vision devices are limited. It acts as a thermal imaging enhancer, quickly upgrading existing devices with clip-on fusion functionality and multiple imaging modes. Jerry-C boosts night vision awareness and provides a tactical advantage by enhancing target identification.
Jerry-YM Monocular Head-mounted Thermal Imager
The monocular head-mounted thermal imager is a high-performance infrared observation device designed for individual soldiers to conduct nighttime investigations and observations.
Tyke-M6 Middle-type Thermal Sight
Tyke-M6 Middle-type Thermal Sight is equipped with a 640×512 infrared detector and a 45mm lens. It has a wide field of view and a very long observation distance while providing excellent thermal images.
Tyke-H6 Heavy-type Thermal Sight
Tyke-H6 Thermal Sight is mainly used to be equipped on 12.7 mm rifles, machine guns, and sniper rifles with Picatinny rail. It can be used for aiming at single or clustered living targets within 1,800 m or light vehicle targets within 2,100 m. It adopts thermal imaging technology to discover and identify targets. It can also realize the accurate aiming of targets through its built-in ballistic calculation and device. Tyke-H6 incorporates a high-definition OLED screen, easy to learn and operate.
Tyke-CH6 Heavy-type Clip-on Thermal Sight
Tyke-CH6 Heavy-type Clip-on Thermal Sight is an economical thermal sight, equipped with a 640×512 thermal detector and matched with 75mm lenses. It can be used alone or in combination with a daylight scope, to provide excellent thermal images.
Tom-B Five Optical Channels Multi-function Binoculars
Tom-B Five Optical Channels Multi-function Binoculars is a small intelligent observation device integrating infrared, low-light, visible light and laser. It has built-in location module, digital magnetic compass, and laser rangefinder. With image fusion function, it can be used for day and night observation and target search. The images and videos can be taken, and the information can be uploaded in time. It is comfortable and portable to use.
Tom-HDB Three Optical Channels HD Binoculars
Tom-HDB Three Optical Channels HD Binoculars has two HD observing channels. The color day channel has a resolution of 6,200,000 pixels, and the thermal imaging channel has a resolution of 800,000 pixels. With the built-in positioning module, digital magnetic compass, and laser rangefinder, it can quickly and accurately locate itself and the target. And the target information can be acquired and uploaded. Tom-HDB has small size and low power consumption and is adaptive to various complex climates and environments
High Quality Scouter Laser Rangefinder-Scouter X Type
The main functions of Spotter series Pocket Laser Rangefinder include: ranging, ranging the distance between two targets, angle measurement, real-time display of measurement data in the eyepiece, power display, data transmission and other functions (Support extended GPS/Bluetooth/Wi-Fi module). It is mainly used for single-hand holding and equipped with tripod for long distance target. Besides, It is small size, lightweight and fitting easily into pocket.

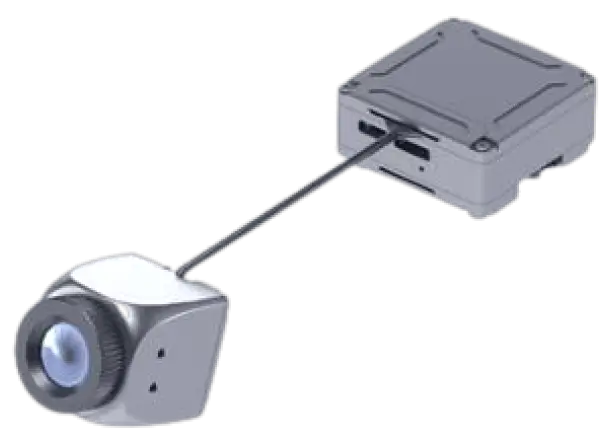

Caddx 384 Thermal Imaging FPV Camera
The Caddx 384 Thermal Imaging FPV Camera offers high-resolution thermal imaging with a 384×288 uncooled vanadium oxide detector, ideal for FPV drone racing, search and rescue, and wildlife monitoring. Key features include a wide 8-14μm wavelength range, energy-efficient low power consumption, and a smooth 50Hz frame rate. With compact dimensions (26.2×35.2×48.8mm) and a weight of 73.5g, it’s easy to integrate into various setups. This camera operates at -20℃ to 60℃ and supports PAL output.

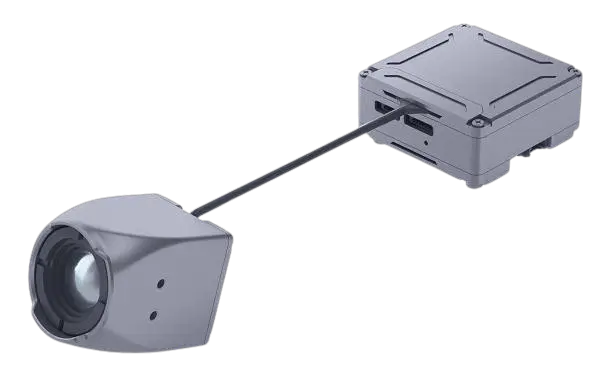

Caddx 640 Thermal Imaging FPV Camera
The Caddx 640 Thermal Imaging FPV Camera is a high-resolution thermal camera with 640×512 pixels, ideal for precision FPV drone applications. Featuring an uncooled vanadium oxide sensor, 50Hz frame rate, and NETD ≤40mK, it provides clear thermal imaging for demanding conditions. Compact (27×37×40mm) and lightweight (60.5g), it seamlessly integrates with various drones, making it perfect for search and rescue, surveillance, and technical inspections.
Anti-jamming Antennas

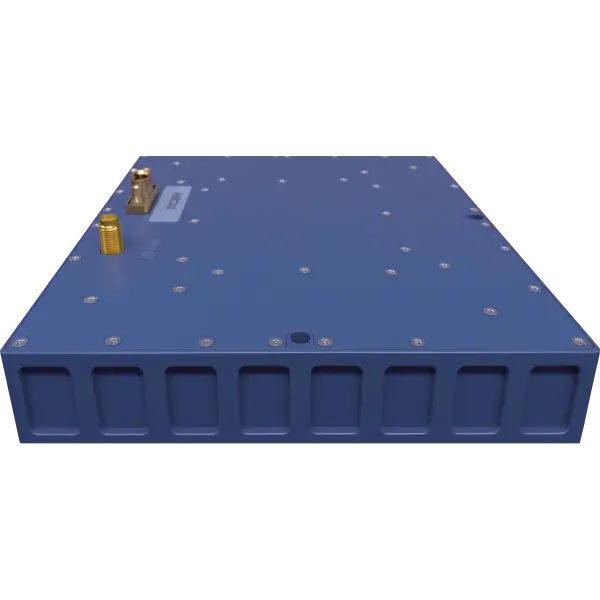

ST100-12V-4VH-Anti-jamming
The ST100-12V Anti-Jamming Module secures UAVs against interference, supporting 360° coverage and multi-directional resistance (up to 85 dBc). It’s compact (100mm x 100mm x 25mm), under 300g, and consumes 7.2W. Interfaces include serial connections for data transmission, compatible with PIXHAWK and IBC controls, with setup instructions provided for each.

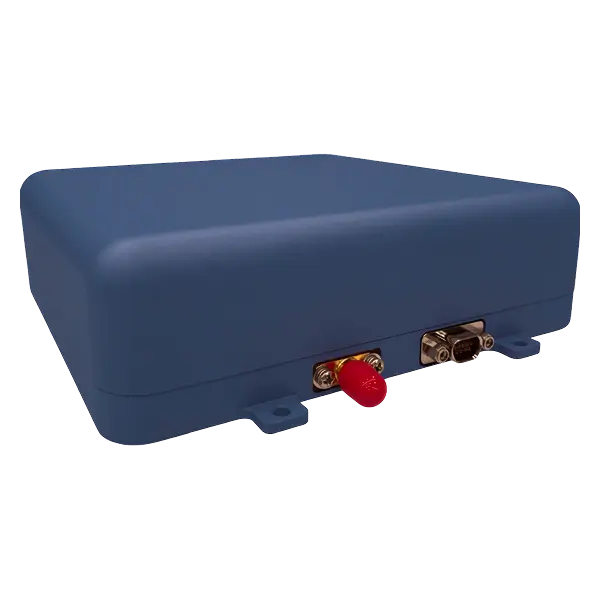

3.0-GNSS-12V Anti Jam Module
The 3.0-GNSS-12V anti-jamming module provides secure, interference-resistant navigation for drones and unmanned vehicles. With full-frequency GNSS support, it detects and mitigates interference, ensuring reliable positioning data output via NEMA0183 protocol. Compact and robust, it's ideal for applications requiring high navigation security, including UAVs, logistics, and critical infrastructure.
3.0pro-GNSS-12V Anti Jam Module
The 3.0pro-GNSS-12V anti-jamming module enhances navigation security for UAVs and unmanned vehicles, providing robust interference resistance and reliable positioning data. With full-frequency GNSS support, it outputs data in the NEMA0183 format, ideal for applications in logistics, defense, and critical infrastructure.
4.0-TX-8CH-DF-WG-DT-Anti Jam
The 3.0pro-GNSS-12V anti-jamming module offers enhanced GNSS security for UAVs and unmanned vehicles. With advanced anti-interference features, it supports reliable satellite signal reception even in challenging environments, making it ideal for critical navigation and timing applications in logistics, defense, and infrastructure.

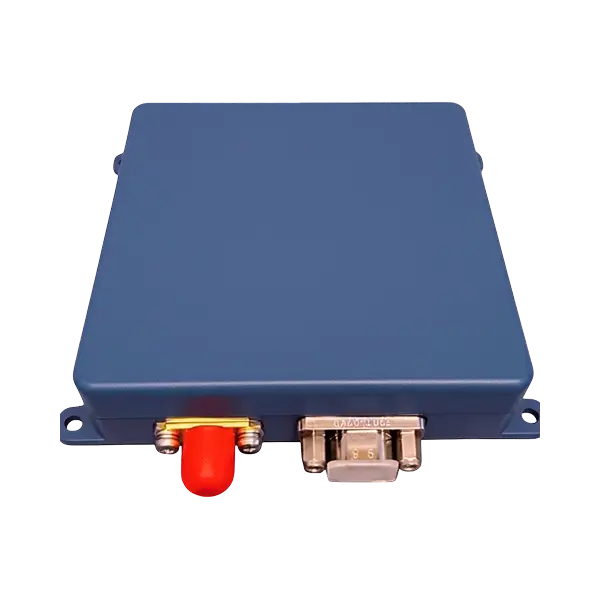

ST65-4CH
The ST65-4 CH is an ultra-miniaturized, all-in-one satellite navigation anti-jamming module designed for small to medium-sized UAVs. It provides robust anti-interference capabilities for Beidou B1 and GPS signals, ensuring secure and reliable navigation. With integrated antenna arrays, anti-jamming components, and a compact design, it's ideal for applications in navigation security across various industries.

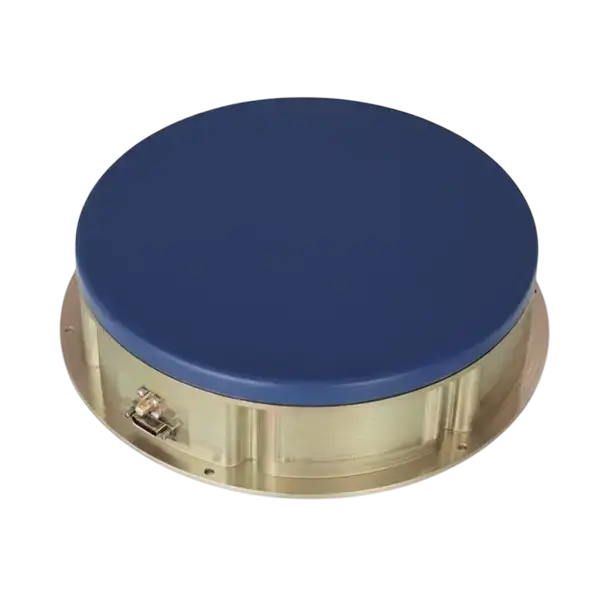

GPS Anti-jamming Antenna
Receiving BD2-B1/GPS L1 satellite navigation signals, and realize anti-jamming function for BD2-B1/GPS L1 frequency signals. Power supply and RF signal one-line output.
| Number of channels | 2-Channel |
| Output signal power | -65dBm ± 5dBm |
| Weight | 270 ± 10g |
| Dimensions | 119.4mm × 76.2mm × 18.6mm |
| Anti-jamming performance | Single broadband interference 75dB ~ 80dB / Single narrowband interference 85dB ~ 90dB |
| Power supply | DC5V ± 0.5V |
| Gain | 40dB ± 1dB |
| Physical interface | TNC type socket |
| Power consumption | 5.0W ± 0.5W |
| Operating temperature range | -40°C ~ 85°C |
APPLICATION
- Airborne
- Combat vehicles
- Ground systems
- Ships
- Other platforms

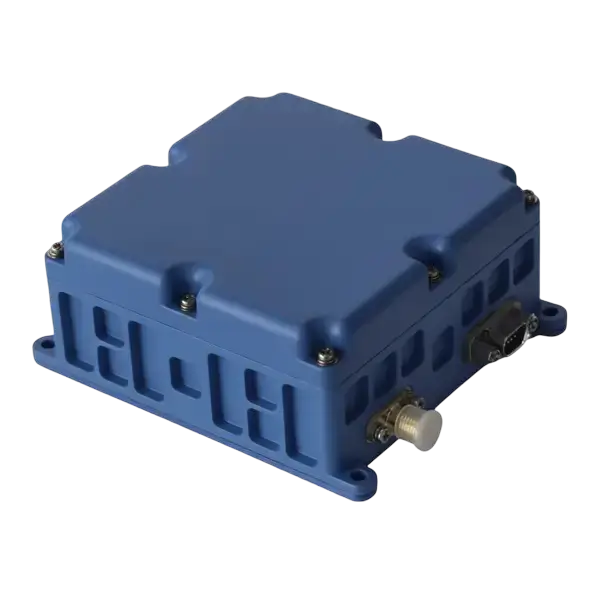

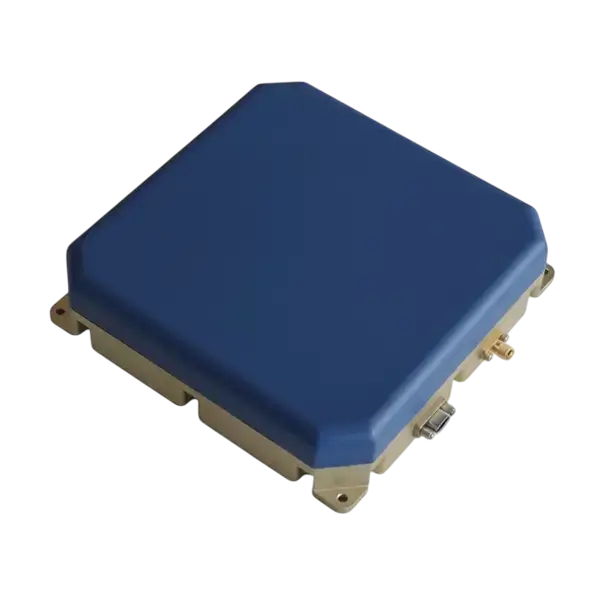

BD2-B3 Anti-interference Antenna
Receive GPS L1 satellite signal, and realize the anti-jamming function of GPS L1 frequency point satellite signal.
| Received signals | GPS L1 |
| Number of channels | 4-Channel |
| Weight | < 400g |
| Dimensions | 130mm x 130mm x 25mm |
| Anti-interference dry signal ratio | Three broadband: 80dB ~ 85dB / Single broadband: 90dB ~ 95dB |
| Power supply | DC5V ~ DC36 |
| Work | 10 (28 V / 0.36 A) |
| Physical interface | J30J-9 core / SMA-K |
| Communication interface | Serial port / RS-232C level (customizable) |
| Output data format | NMEA0183 |
| Operating temperature | - 45°C ~ 85°C |
APPLICATION
- Airborne
- Combat vehicles
- Ground systems
- Ships
- Other platforms
Thermal Cameras

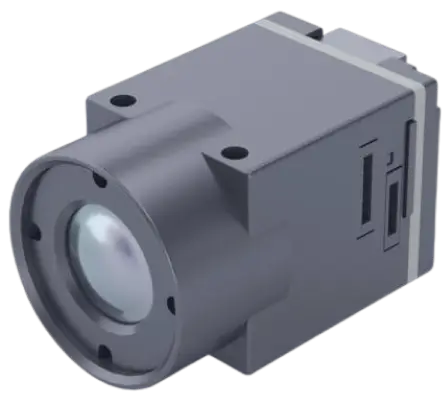

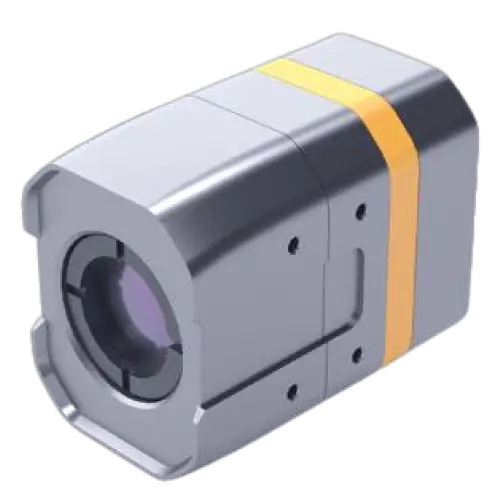

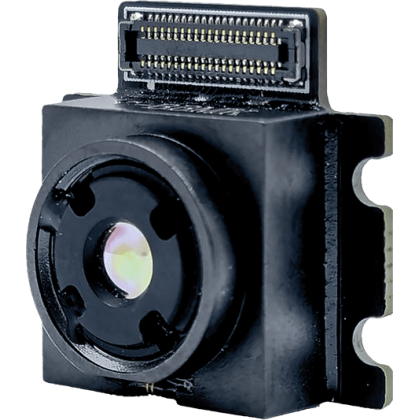

Thermal Camera U01-256
| Resolution: | 256 × 192 |
| NETD: | ≤50mK @25°C, F#1.0, 25Hz |
| FOV(H*V): | 25.46° × 19.23° |
| Frame rate: | 25Hz |
| Thermal time constant: | ＜10ms |
| Detection distances: | HUM: ≤ 642m, VHCL: ≤ 944m |
| Recognition distances: | HUM: ≤ 160m, VHCL: ≤ 236m |
| Pixel size: | 12μm |
| Dimensions: | L24 × W24 × H27.92mm, 22g |

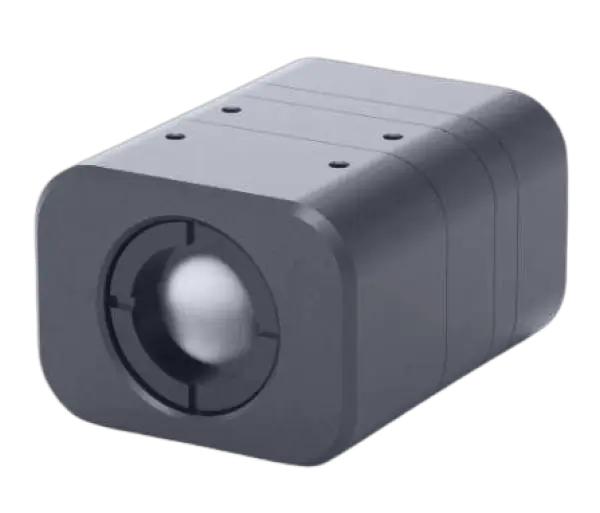

Thermal Camera U02-384
| Resolution: | 384 × 288 |
| NETD: | ≤40mK @25°C, F#1.0, 25Hz |
| FOV(H*V): | 39.46° × 30.11° |
| Frame rate: | 50Hz |
| Thermal time constant: | ＜12ms |
| Detection distances: | HUM: ≤ 606m, VHCL: ≤ 892m |
| Recognition distances: | HUM: ≤ 151m, VHCL: ≤ 223m |
| Pixel size: | 17μm |
| Dimensions: | L28.4 × W28.4 × H41.1mm, 65g |
Thermal Camera U03-640
| Resolution: | 640 × 512 |
| NETD: | ≤40mK @25°C, F#1.0, 25Hz |
| FOV(H*V): | 45.76° × 37.31° |
| Frame rate: | 50Hz |
| Thermal time constant: | ＜12ms |
| Detection distances: | HUM: ≤ 859m, VHCL: ≤ 1263m |
| Recognition distances: | HUM: ≤ 214m, VHCL: ≤ 315m |
| Pixel size: | 12μm |
| Dimensions: | L28.4 × W28.4 × H42.45mm, 65g |
Spike-B Series On-board Night Vision Automotive Thermal Imager
The On-board Automotive Night Vision Thermal Imager combines an infrared detector and low-light camera for dual light fusion, intelligent recognition, and alerts. It identifies hotspots and hidden individuals, improving hazard detection in specialized vehicle assistance systems.
| Resolution: | 640×512 |
| Detection Range: | Vehicle: 250m, Human: 200m |
| FOV (H×V): | Infrared: 45.5° × 37°, Low-light: 51° × 30°, Fusion: 45.5° × 30° |
| Operating Temperature: | -40°C to +60°C |
| Power Consumption: | ≤4W, 10W with defrost |
| Encapsulation: | IP67 rating |
| Frame Rate: | 50 Hz |
FEATURES
- The infrared module without shutters delivers seamless image capture.
- Provides digital video output that resists interference and features minimal latency.
- Supports an optional display with the capacity for up to four input channels.
- Combining infrared with visible light enhances detail and emphasizes targets.
- High-definition infrared resolution of 640x512 and 1080P star-level performance in low light conditions.
ABOUT US

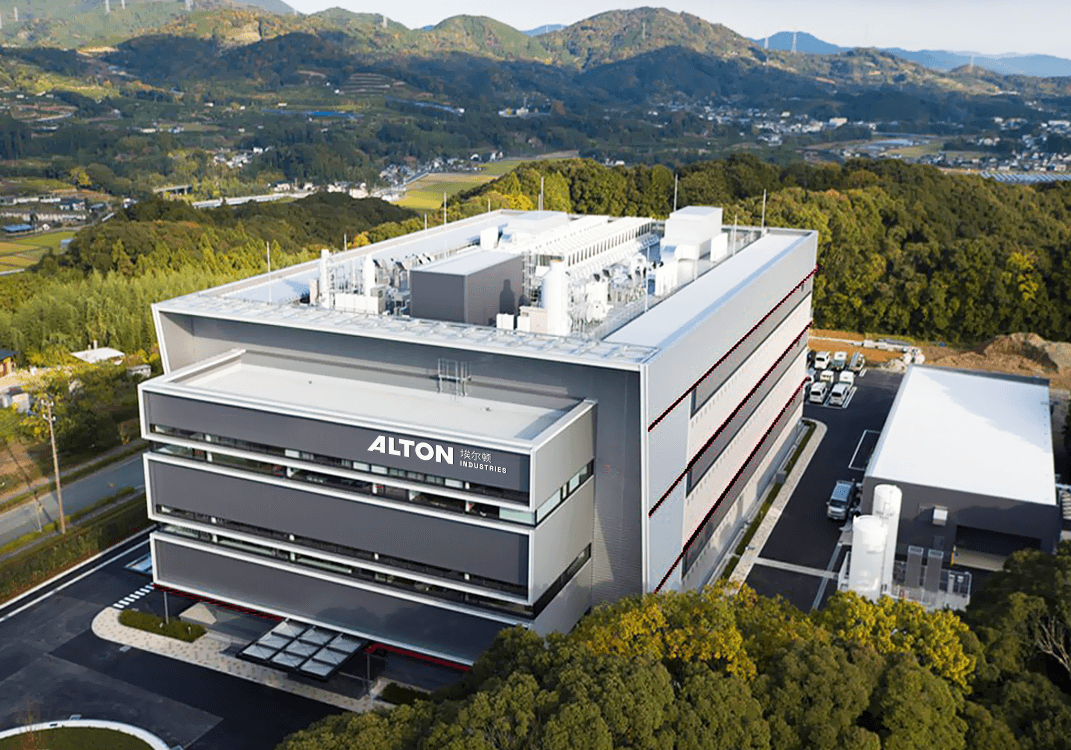

Alton-Industries., Ltd. was established in 2008, is a professional engaged in RF micro-wave power amplifier, active devices, passive devices and subsystems research and development, production and sales of the company. Relying on the academic research team of well-known universities, the company has established an innovative research and development team with doctoral and master’s talents, and continues to attract outstanding talents in the industry and outstanding students from famous universities to expand the team.
The company has about 20 authorized invention patents in microwave devices, circuits, antennas, etc. Applications include radar, electronic countermeasures, aerospace, navigation and other military fields, but also widely used in microwave communications, mobile communications and other civilian markets. The products cover RF and microwave devices, components and antennas, among which, the active products include high-power solid-state microwave power amplifier, low noise amplifier, transceiver components, up and down frequency converter, frequency source, etc. Passive products include microwave filters, diplexers, power splitters, couplers, power synthesizers, etc. The antenna products are dominated by various ultra-wideband and high-gain horn antennas. The product operating frequency covers VHF, UHF, L-band, S-band, C-band, X-band, Ku-band and so on.
WORKING WITH THE BEST
CONTACT US TODAY
For direct inquiries regarding aviation products like drones and engines, reach out to us via email. Our engineers excellent in anti-jamming and GPS positioning solutions. We pride ourselves on providing a one-stop solution for our customers, leveraging strong partnerships with industry leaders like Foxeer, SpeedyBee, Radiomaster, DLE, Skyzone, Hobby Wing, RunCam, ZDZ, and Harwar.
