SW400pro 400N
Micro Turbine

The Pinnacle of Jet Propulsion

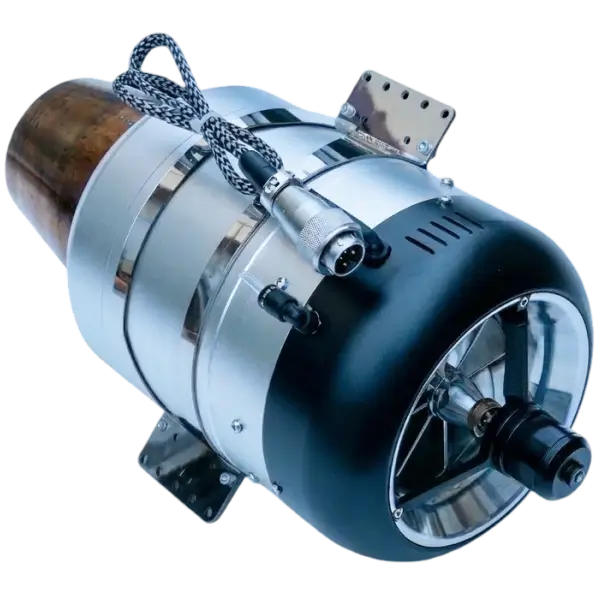

Experience the next level of RC aviation with the SW400pro 400N Micro Turbine. Engineered specifically for high-performance model aircraft, this turbine is the definitive choice for pilots who refuse to compromise on power, precision, or reliability.

Advanced Technical Features

  • Next-Gen ECU: Equipped with a sophisticated 32-bit auto-restart ECU, the SW400pro ensures your engine is always mission-ready, providing peace of mind with intelligent recovery in the event of a flameout.
  • Brushless Reliability: By utilizing a high-efficiency brushless starter and fuel pump, this turbine offers superior longevity and smoother operation compared to traditional brushed systems.
  • Intelligent Monitoring: Keep track of your flight diagnostics via the included color-screen data terminal. It delivers live telemetry on all vital parameters, allowing for precise real-time performance adjustments.

Performance & Value

The SW400pro 400N Micro Turbine is celebrated for its lightning-fast throttle response, giving you surgical control over your aircraft’s thrust. Beyond its mechanical prowess, it currently holds the title for the most competitive cost-to-performance ratio in the 400N class, making elite jet technology more accessible than ever.

The Verdict

Whether you are pushing the limits of aerobatics or seeking a dependable powerhouse for your scale project, the SW400pro 400N Micro Turbine delivers unmatched efficiency and value. Upgrade to the ultimate in micro-turbine technology today.

Specifications

Parameter Value Parameter Value
Engine diameter 148mm ECU battery 2S Lipo
Engine length 341mm Power Battery 3S Lipo
Engine weight 3413g Operating temp -25°C ~ 40°C
Complete set weight 3897g Telemetry RS-232/RS-422
Thrust at STP 400N PPM input 700-2400 ms
RPM range 33,000 – 95,000 Maintenance cycle 25 – 40Hrs
Fuel consumption at max RPM 1000g/min (1250ml/min) Fuel type Diesel or Jet A1
Mass flow at max RPM 0.67 Kg/S Lubricating oil Diesel 3% / Kerosene 5%
Pressure ratio at max RPM 3.8 Bar Starting method Direct fuel startup
Max exhaust temp 700°C Auto-Restart function Yes
Max ejection acceleration 10 G
Max operating speed 300m/S (1080Km/Hr)
