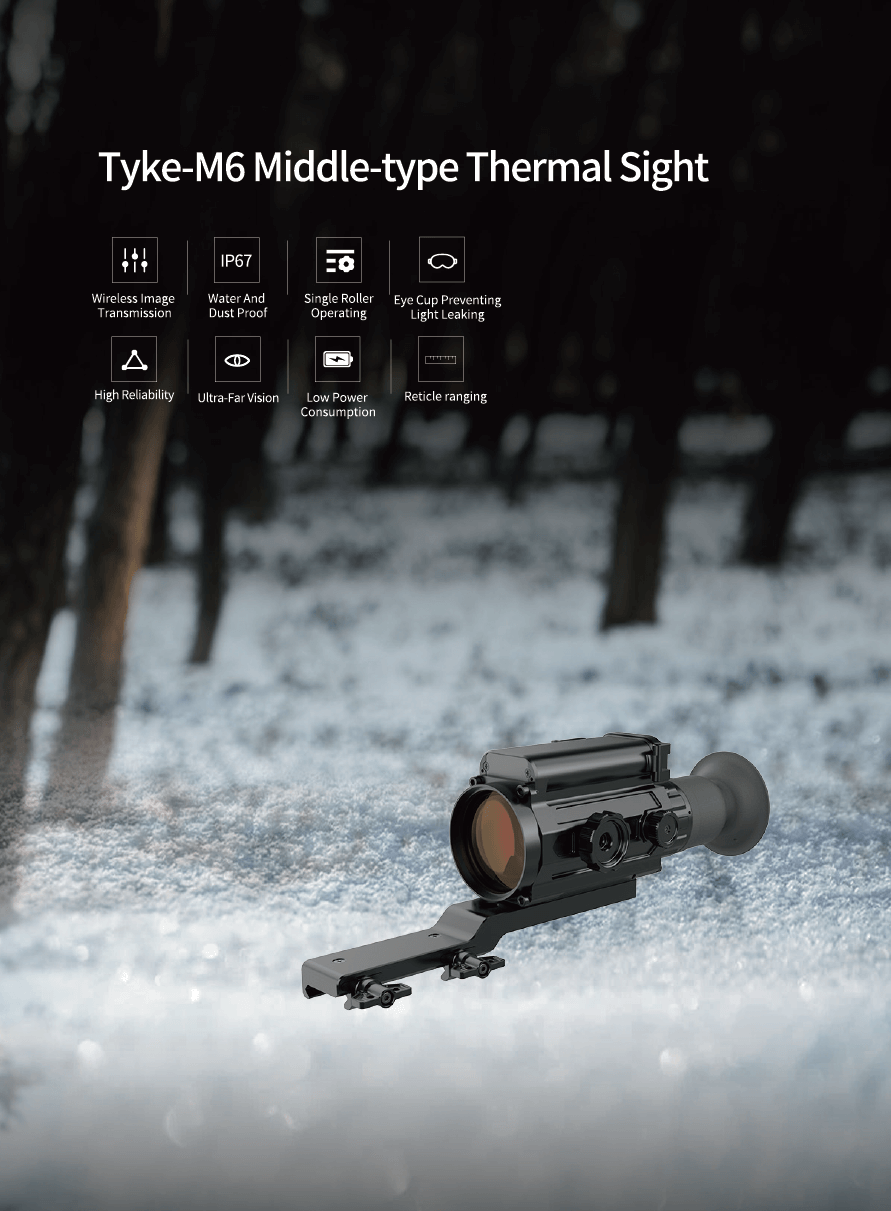

Tyke-M6 Middle-type Thermal Sight

The Tyke-M6 Middle-type Thermal Sight is a highly capable thermal imaging scope equipped with a 640×512 infrared detector and a 45mm lens. Designed for long-range observation, it offers exceptional thermal imaging clarity, making it suitable for various environments and conditions. With a detection range of up to 4000 meters for human targets and 6000 meters for vehicle targets, it provides extensive coverage for surveillance and tactical operations.

The Tyke-M6 boasts a compact and durable design, ensuring it is both waterproof and dustproof, while its shock resistance guarantees reliable performance in rugged terrain. Its advanced features include a 1-4x digital zoom, a NETD of ≤40mk, and a frame rate of 25Hz, ensuring smooth and detailed imagery even in challenging conditions. This thermal sight is ideal for military, law enforcement, and professional use in any weather or meteorological conditions.

SKU: TM6-640 Category: Tag:

Description

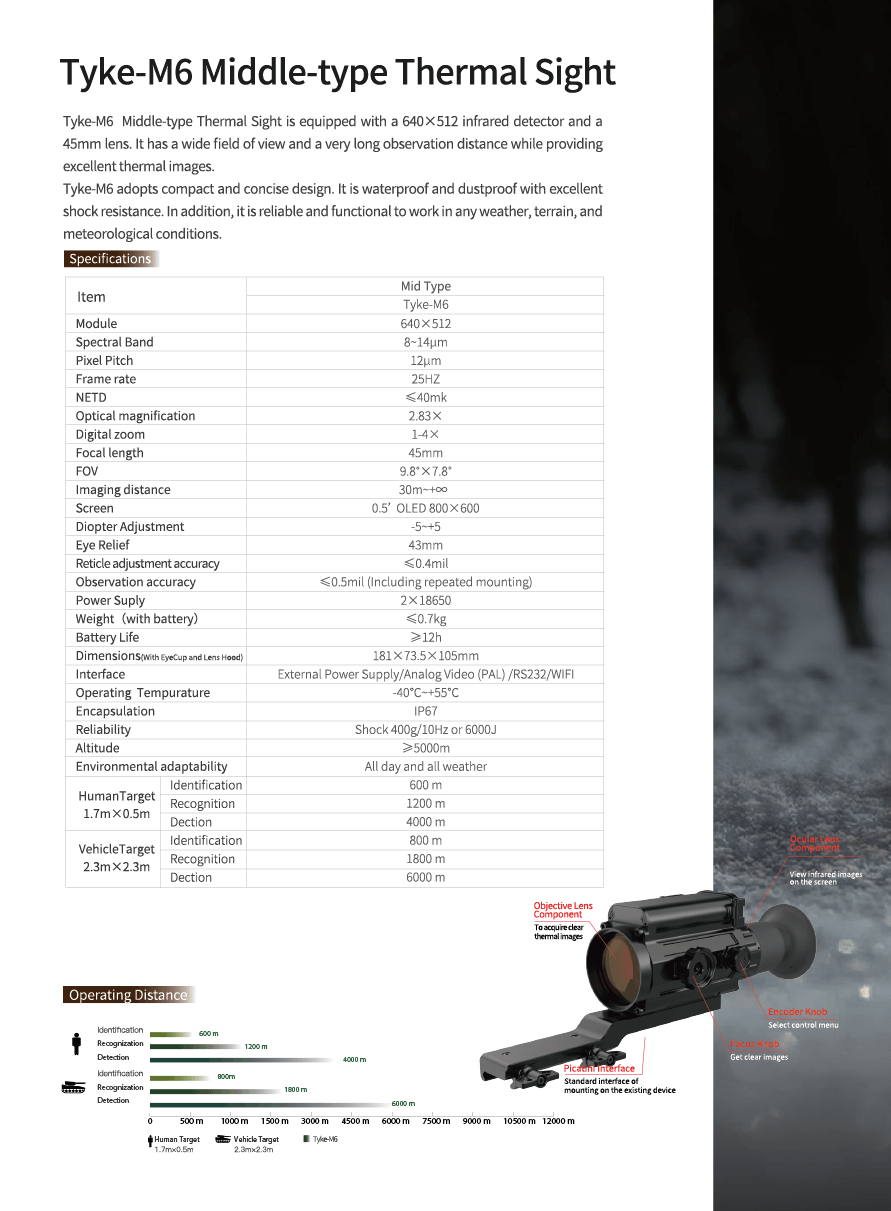

Tyke-M6 Specifications

Module 640×512
Spectral Band 8~14μm
Pixel Pitch 12μm
Frame Rate 25HZ
NETD ≤40mk
Optical Magnification 2.83×
Digital Zoom 1-4×
Focal Length 45mm
FOV 9.8°×7.8°
Imaging Distance 30m~+∞
Screen 0.5’ OLED 800×600
Diopter Adjustment -5~+5
Eye Relief 43mm
Reticle Adjustment Accuracy ≤0.4mil
Observation Accuracy ≤0.5mil (Including repeated mounting)
Power Supply 2×18650
Weight (with battery) ≤0.7kg
Battery Life ≥12h
Dimensions (With EyeCup and Lens Hood) 181×73.5×105mm
Interface External Power Supply/Analog Video (PAL) /RS232/WIFI
Operating Temperature -40℃~+55℃
Encapsulation IP67
Reliability Shock 400g/10Hz or 6000J
Altitude ≥5000m
Environmental Adaptability All day and all weather

HumanTarget (1.7m × 0.5m)

Identification 600m
Recognition 1200m
Detection 4000m

VehicleTarget (2.3m × 2.3m)

Identification 800m
Recognition 1800m
Detection 6000m
