Tom-HDB Three Optical Channels HD Binoculars
$7,000.00

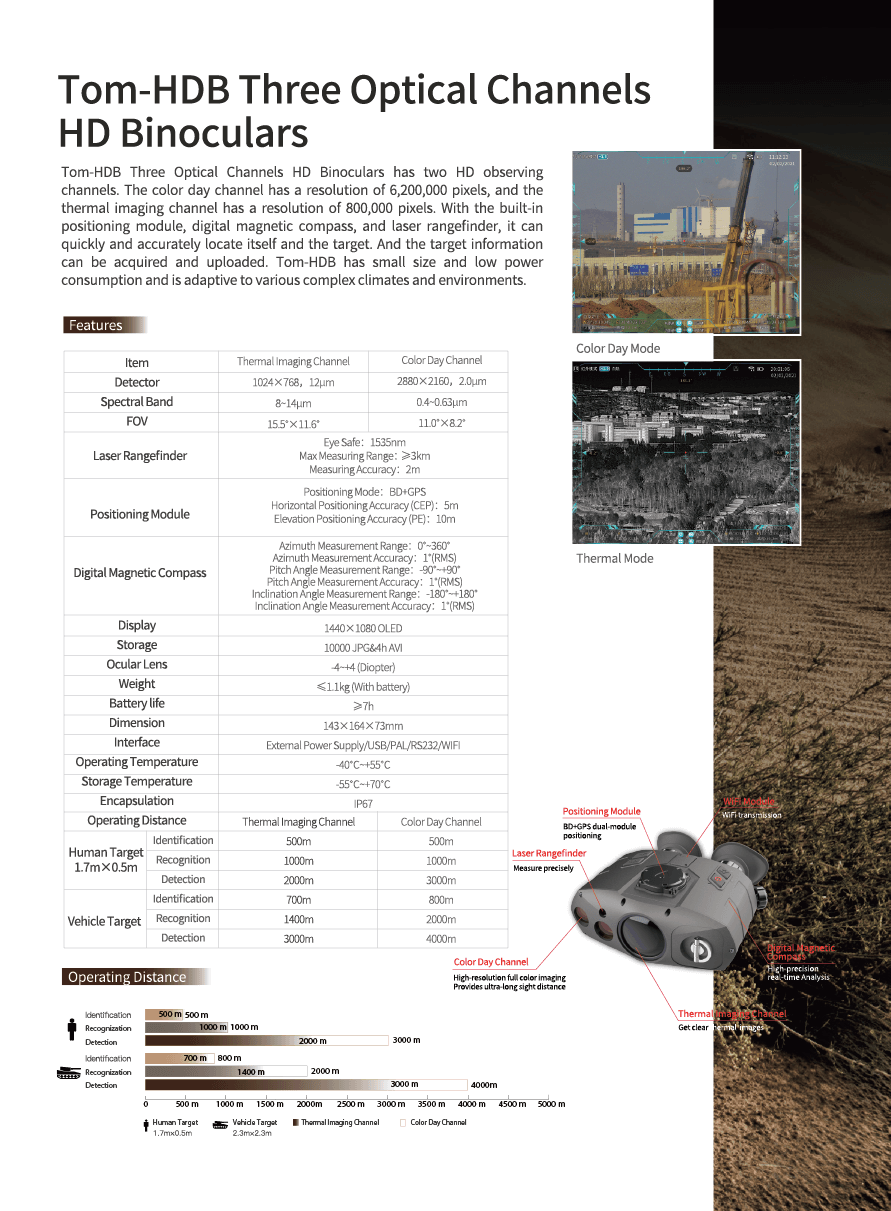

The Tom-HDB Three Optical Channels HD Binoculars is an advanced observation device that features two high-definition channels for day and thermal imaging. The daytime color channel boasts a resolution of 6.2 million pixels, while the thermal imaging channel has a resolution of 800,000 pixels. This binocular includes a built-in positioning module, digital magnetic compass, and laser rangefinder for precise location tracking and target identification. It can quickly capture and upload target information, making it ideal for various professional and tactical environments.
Designed to withstand complex climates, the Tom-HDB is compact, energy-efficient, and can operate in extreme temperatures ranging from -40°C to +55°C. Its 1440×1080 OLED display, long battery life of 7 hours, and lightweight body of 1.1kg ensure comfort and extended usability. With additional features like storage for up to 10,000 images and 4 hours of video, IP67 protection, and compatibility with external power supplies and wireless transmission (WIFI), the Tom-HDB is adaptable for both military and civilian applications.
Description
Item
| Thermal Imaging Channel | Color Day Channel | |
|---|---|---|
| Detector | 1024×768, 12μm | 2880×2160, 2.0μm |
| Spectral Band | 8~14μm | 0.4~0.63μm |
| FOV | 15.5°×11.6° | 11.0°×8.2° |
| Laser Rangefinder | Eye Safe: 1535nm Max Measuring Range: ≥3km Measuring Accuracy: 2m |
|
| Positioning Module | Positioning Mode: BD+GPS Horizontal Positioning Accuracy (CEP): 5m Elevation Positioning Accuracy (PE): 10m |
|
| Digital Magnetic Compass | Azimuth Measurement Range: 0°~360° Azimuth Measurement Accuracy: 1°(RMS) Pitch Angle Measurement Range: -90°~+90° Pitch Angle Measurement Accuracy: 1°(RMS) Inclination Angle Measurement Range: -180°~+180° Inclination Angle Measurement Accuracy: 1°(RMS) |
|
| Display | 1440×1080 OLED | |
| Storage | 10000 JPG & 4h AVI | |
| Ocular Lens Diopter | -4~+4 | |
| Weight | ≤1.1kg (With battery) | |
| Battery Life | ≥7h | |
| Dimension | 143×164×73mm | |
| Interface | External Power Supply/USB/PAL/RS232/WIFI | |
| Operating Temperature | -40℃~+55℃ | |
| Storage Temperature | -55℃~+70℃ | |
| Encapsulation | IP67 | |
Operating Distance
| Thermal Imaging Channel | Color Day Channel | |
|---|---|---|
| Human Target 1.7m×0.5m | ||
| Identification | 500m | 500m |
| Recognition | 1000m | 1000m |
| Detection | 2000m | 2000m |
| Vehicle Target | ||
| Identification | 700m | 800m |
| Recognition | 1400m | 2000m |
| Detection | 3000m | 4000m |
