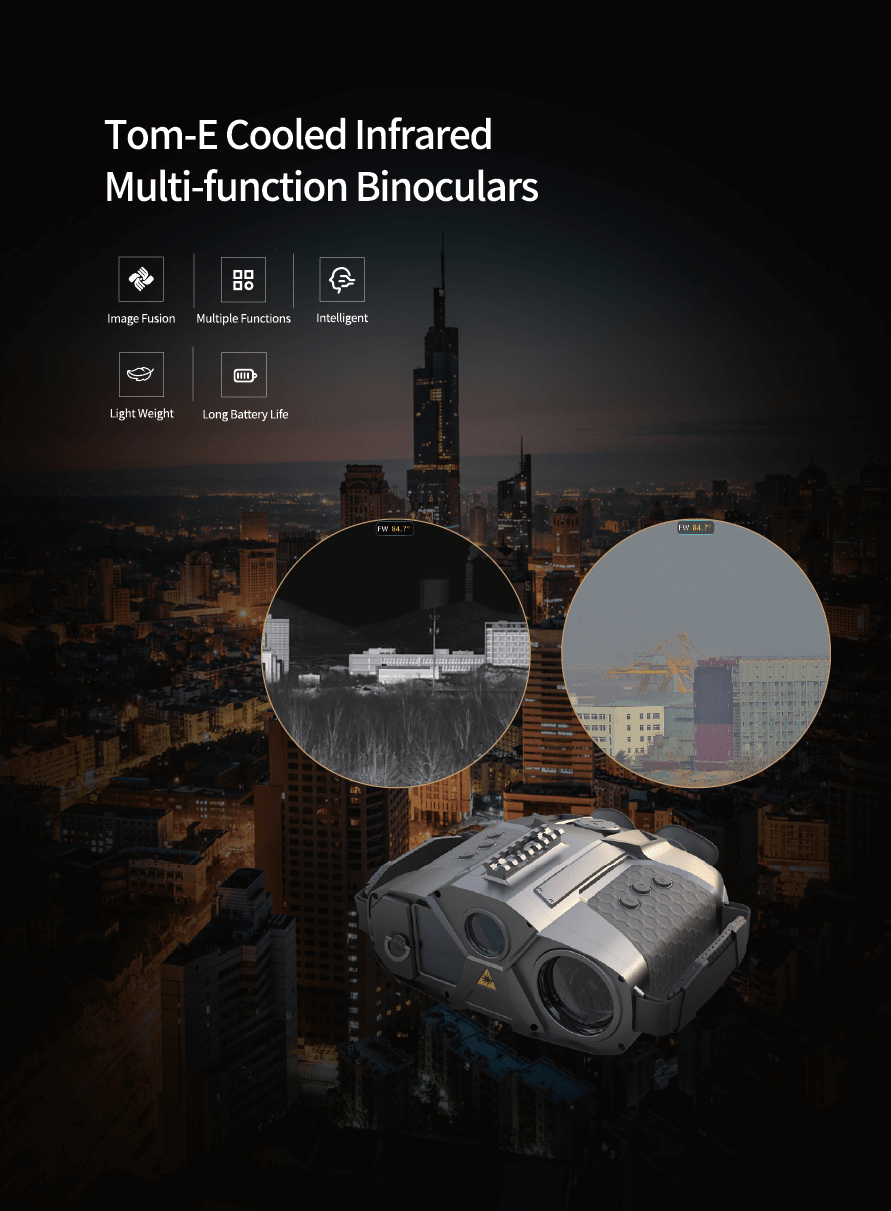

Tom-E Cooled Infrared Multi-function Binoculars
$3,600.00

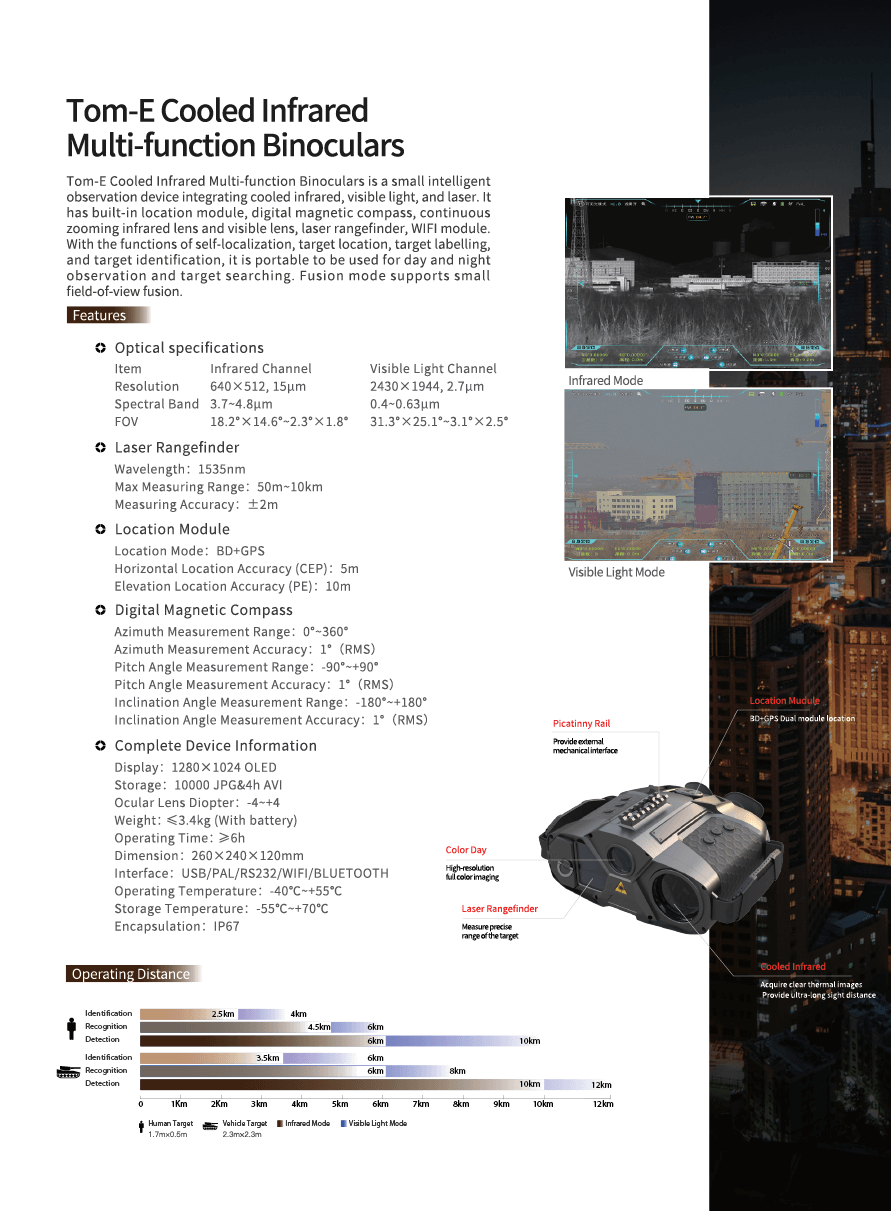

The Tom-E Cooled Infrared Multi-function Binoculars is a compact and intelligent observation device that integrates cooled infrared, visible light, and laser technologies. This multi-functional binocular offers built-in features like a location module, digital magnetic compass, continuous zooming infrared and visible lenses, laser rangefinder, and a Wi-Fi module. Designed for day and night observation, target searching, and identification, it provides versatility across various environments and operational conditions. The fusion mode enables small field-of-view fusion for more focused observations.
Key specifications include a 1535nm laser rangefinder with a range of up to 10km, high-accuracy positioning with BD+GPS, and advanced imaging in both infrared and visible light spectrums. With IP67 encapsulation and a sturdy build, it is suitable for rugged environments, making it ideal for military, surveillance, and search and rescue operations.
The device is designed for portability and ease of use, with a weight of just 3.4kg and a battery life of over 6 hours.
Description
Optical Specifications
| Item | Infrared Channel | Visible Light Channel |
|---|---|---|
| Resolution | 640×512, 15μm | 2430×1944, 2.7μm |
| Spectral Band | 3.7~4.8μm | 0.4~0.63μm |
| FOV | 18.2°×14.6°~2.3°×1.8° | 31.3°×25.1°~3.1°×2.5° |
Laser Rangefinder
| Wavelength | 1535nm |
| Max Measuring Range | 50m~10km |
| Measuring Accuracy | ±2m |
Location Module
| Location Mode | BD+GPS |
| Horizontal Location Accuracy (CEP) | 5m |
| Elevation Location Accuracy (PE) | 10m |
Digital Magnetic Compass
| Azimuth Measurement Range | 0°~360° |
| Azimuth Measurement Accuracy | 1° (RMS) |
| Pitch Angle Measurement Range | -90°~+90° |
| Pitch Angle Measurement Accuracy | 1° (RMS) |
| Inclination Angle Measurement Range | -180°~+180° |
| Inclination Angle Measurement Accuracy | 1° (RMS) |
Complete Device Information
| Display | 1280×1024 OLED |
| Storage | 10000 JPG & 4h AVI |
| Ocular Lens Diopter | -4~+4 |
| Weight | ≤3.4kg (With battery) |
| Operating Time | ≥6h |
| Dimension | 260×240×120mm |
| Interface | USB/PAL/RS232/WIFI/BLUETOOTH |
| Operating Temperature | -40ºC~+55ºC |
| Storage Temperature | -55ºC~+70ºC |
| Encapsulation | IP67 |
