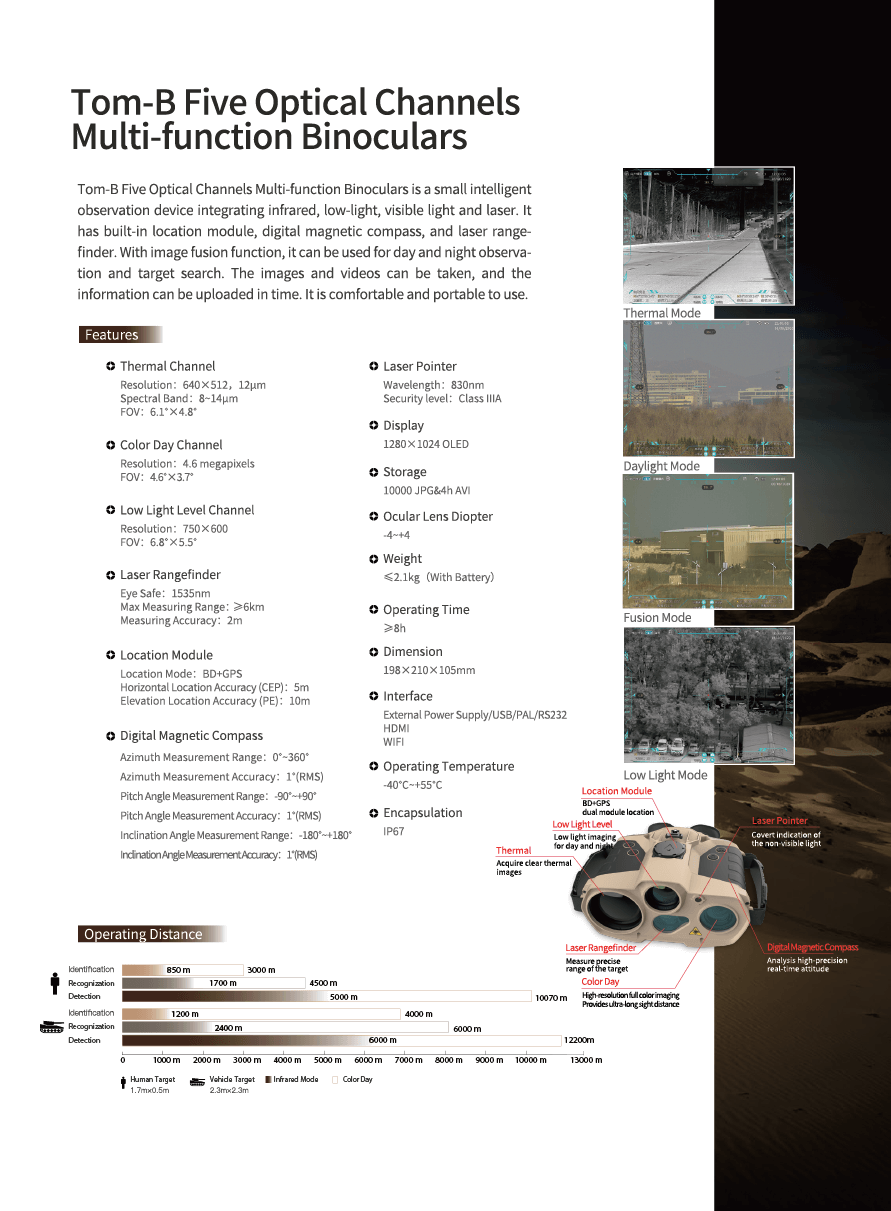

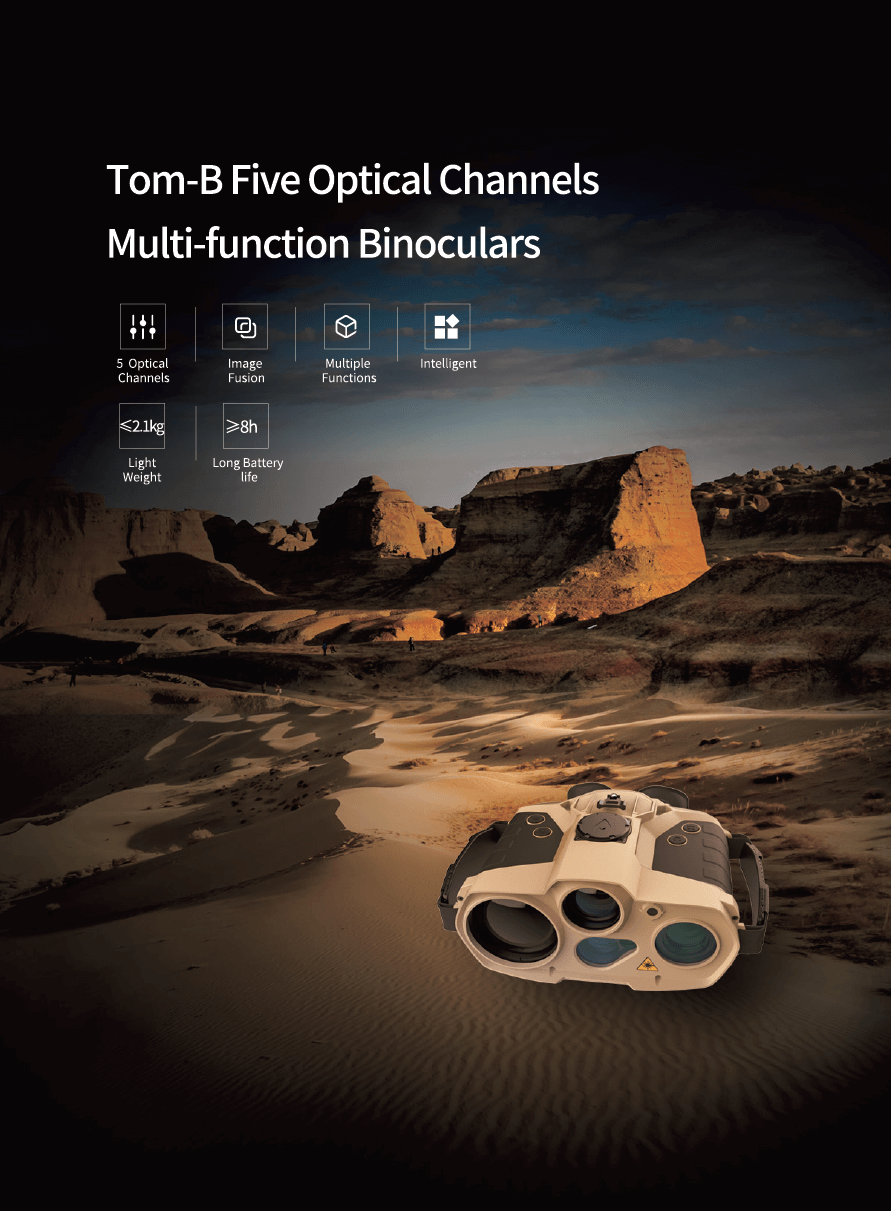

Tom-B Five Optical Channels Multi-function Binoculars

$15,000.00

The Tom-B Five Optical Channels Multi-function Binoculars is a compact and intelligent observation device that integrates infrared, low-light, visible light, and laser technologies. It is designed for day and night observation, target search, and is ideal for professional applications such as enforcement, rescue, and tactical operations. The binoculars feature a built-in location module, digital magnetic compass, and laser rangefinder, allowing users to perform real-time tracking and distance measurement with high precision.

With image fusion capability, the device combines multiple imaging technologies to provide a versatile tool for various environments. Users can capture both images and videos, and the information can be easily uploaded via wireless transmission. It is designed to be comfortable and portable, featuring a 1280×1024 OLED display, 64GB storage, and is capable of operating in extreme temperatures from -40°C to +55°C with an IP67 waterproof rating.

Equipped with a 1535nm laser rangefinder with a maximum range of 6km, a 640×512 thermal imager, and high-resolution visible light imaging, the Tom-B offers advanced observation capabilities in a lightweight, rugged design.

SKU: TMB-5OC Category:

Description

Thermal Channel

Resolution 640×512, 12μm
Spectral Band 8~14μm
FOV 6.1°×4.8°

Color Day Channel

Resolution 4.6 megapixels
FOV 4.6°×3.7°

Low Light Level Channel

Resolution 750×600
FOV 6.8°×5.5°

Laser Rangefinder

Eye Safe 1535nm
Max Measuring Range ≥6km
Measuring Accuracy 2m

Location Module

Location Mode BD+GPS
Horizontal Location Accuracy (CEP) 5m
Elevation Location Accuracy (PE) 10m

Digital Magnetic Compass

Azimuth Measurement Range 0°~360°
Azimuth Measurement Accuracy 1°(RMS)
Pitch Angle Measurement Range -90°~+90°
Pitch Angle Measurement Accuracy 1°(RMS)
Inclination Angle Measurement Range -180°~+180°
Inclination Angle Measurement Accuracy 1°(RMS)

Laser Pointer

Wavelength 830nm
Security Level Class IIIA

Display

Resolution 1280×1024 OLED

Storage

Capacity 10000 JPG & 4h AVI

Physical Specifications

Ocular Lens Diopter -4~+4
Weight ≤2.1kg (With Battery)
Operating Time ≥8h
Dimension 198×210×105mm

Interface

External Power Supply USB/PAL/RS232
Display HDMI
Wireless Transmission WIFI

Environmental Specifications

Operating Temperature -40℃~+55℃
Encapsulation IP67
