Jerry-C Clip-on Thermal Imager

$2,100.00

The Jerry-C Clip-on Thermal Imager is an advanced thermal imaging attachment designed to enhance existing night vision devices, such as I² and CCD systems, especially in environments where traditional night vision is limited. With a high-performance 640×512, 12μm infrared detector, it provides superior image clarity and situational awareness. This device can be easily clipped onto night vision optics like the PVS-14 to overlay thermal imagery onto analog night vision, offering a fusion of both technologies for enhanced target identification.

The Jerry-C supports multiple imaging modes, including Hot White, Highlight, and Contour, allowing users to adapt the display based on different operational conditions. Its 30.5° field of view ensures comprehensive coverage, and the lightweight design (just 78g) makes it ideal for extended use. Powered by rechargeable CR123 or 18650 batteries, the device is also built for durability with an IP67 rating, capable of withstanding harsh conditions.

This thermal clip-on system is perfect for those seeking a tactical advantage in target detection while retaining the full functionality of their existing night vision gear.

SKU: JC-640C5 / JC-640CE5 Category: Tag:

Description

Jerry-C

Model C5 CE5

Infrared Specifications

Resolution 640×512
Pixel Pitch 12μm
Spectral Band 8~14μm

Optical Specifications

Lens Focal Length f11.52mm
Field of View (FOV) φ30.5°

Functions

Display Mode White hot/Highlight/Outline
Display Functions Normally on/Breathing
Brightness Adjustment Support
Auto Brightness Support
Shutter Correction Support
Contrast Adjustment Support
Threshold Adjustment Support
Menu Rollover Support
Chinese and English Support

Interfaces

Data RS232
Video PAL
Power Supply Mode 17335/18650 External power supply (3~5.5V)

Environmental Adaption

Operating Temperature -40℃~+60℃
IP Encapsulation IP67
Weight 110g 78g

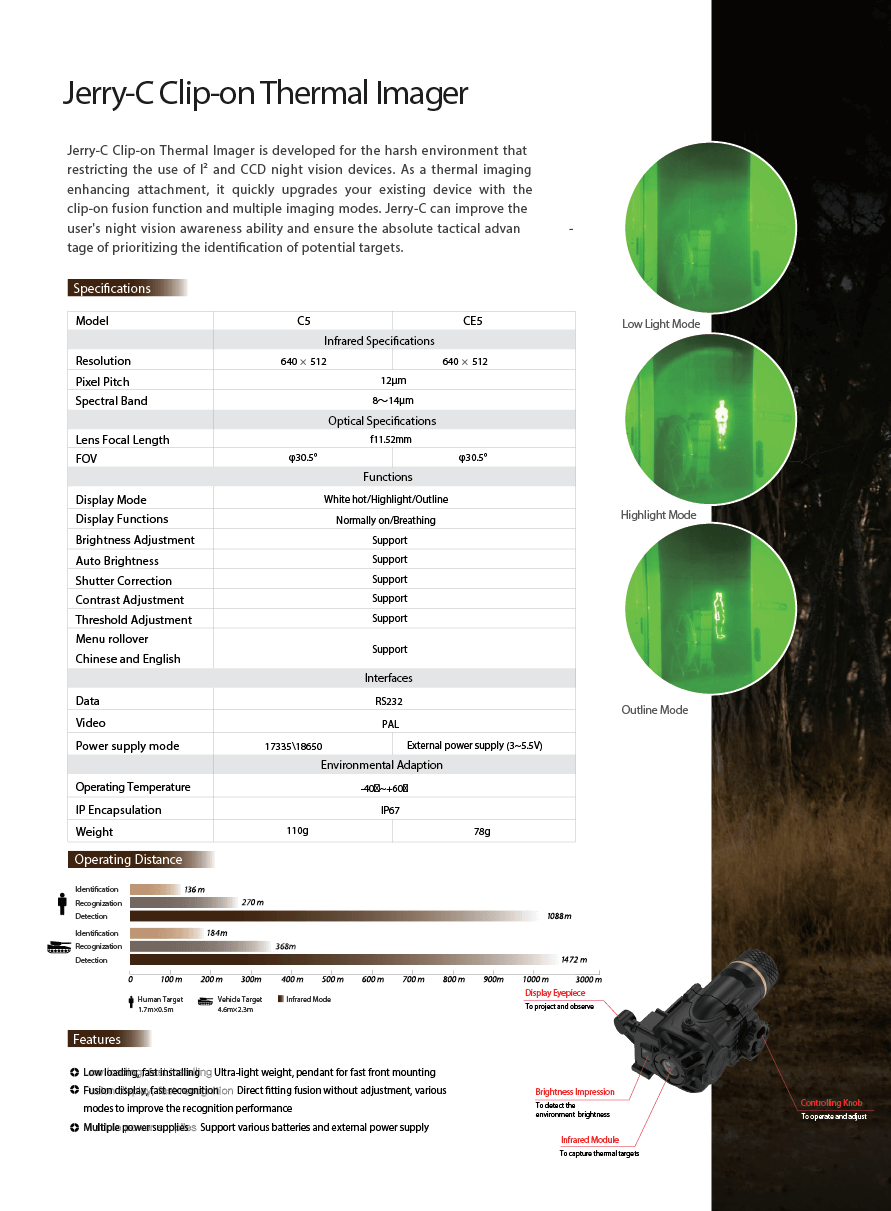

Jerry-C Specs
