High Quality Scouter Laser Rangefinder-Scouter X Type
$2,100.00
The Scouter Laser Rangefinder is a compact, high-precision device primarily designed for single-hand operation or tripod use for long-distance targets. It features ranging functionality, including measuring the distance between two targets, angle measurement, and real-time data display within the eyepiece. Additionally, the device supports data transmission via extended modules such as GPS, Bluetooth, and Wi-Fi.
Its small size, lightweight build, and ease of portability make it ideal for outdoor applications. It offers reliable performance with a 1535nm laser and different models provide ranging capabilities from 30 to 10,000 meters, depending on the variant. The Scouter is built for durability with an IP67 rating, operating at temperatures between -40°C to +55°C and capable of withstanding extreme storage conditions.
The device operates on CR123A batteries, ensuring up to 5000 measurements on a single charge. With a field of view of 6°, 7× magnification, and accurate distance measurement, the Scouter is a powerful tool for professional use in various environmental conditions.

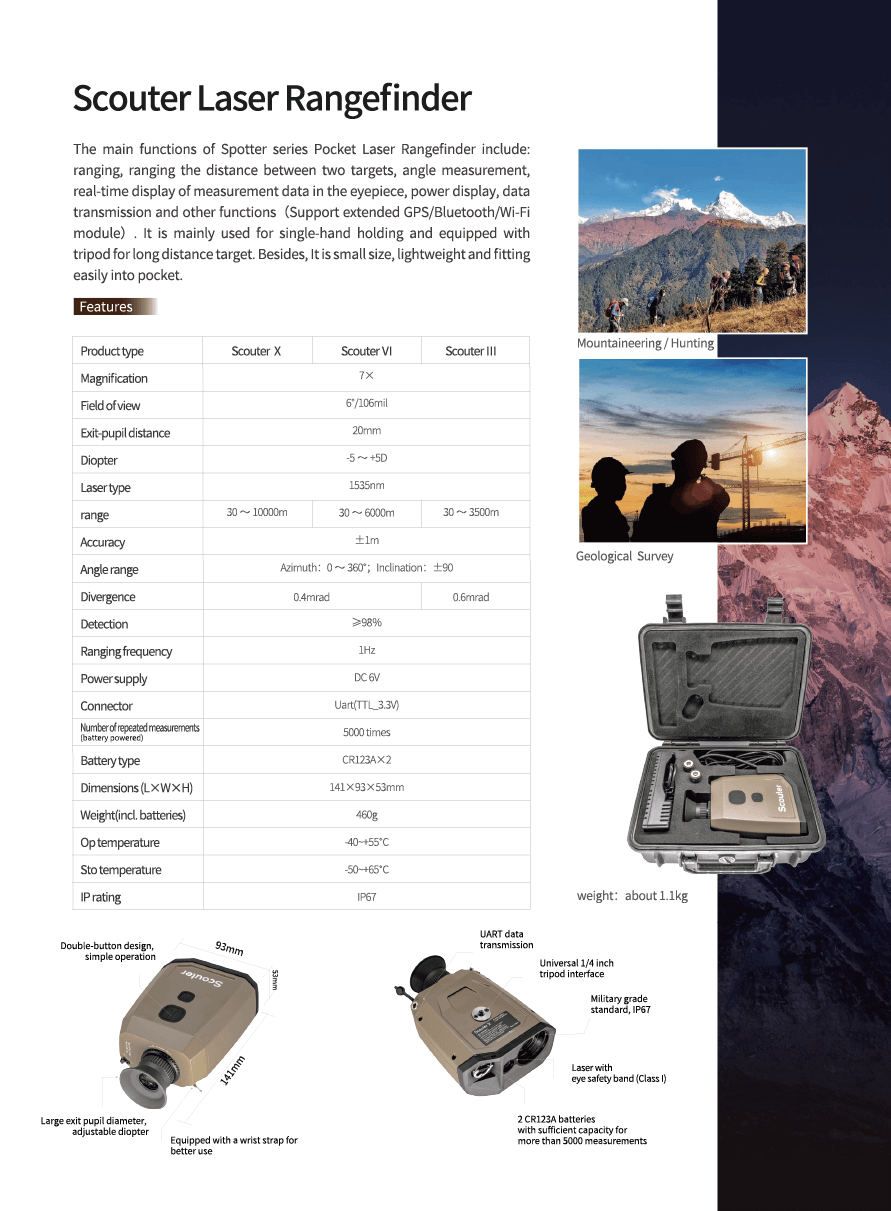

Description
Product type
| Scouter X | Scouter VI | Scouter III | |
|---|---|---|---|
| Magnification | 7× | 7× | 7× |
| Field of view | 6°/106mil | 6°/106mil | 6°/106mil |
| Exit-pupil distance | 20mm | 20mm | 20mm |
| Diopter | -5 ~ +5D | -5 ~ +5D | -5 ~ +5D |
| Laser type | 1535nm | 1535nm | 1535nm |
| Range | 30 ~ 10000m | 30 ~ 6000m | 30 ~ 3500m |
| Accuracy | ±1m | ±1m | ±1m |
| Angle range | Azimuth: 0 ~ 360°; Inclination: ±90° | Azimuth: 0 ~ 360°; Inclination: ±90° | |
| Divergence | 0.4mrad | 0.6mrad | |
| Detection | ≥98% | ≥98% | |
| Ranging frequency | 1Hz | 1Hz | |
| Power supply | DC 6V | DC 6V | |
| Connector | Uart(TTL_3.3V) | Uart(TTL_3.3V) | |
| Number of repeated measurements (battery powered) | 5000 times | 5000 times | |
| Battery type | CR123A × 2 | CR123A × 2 | |
| Dimensions (L×W×H) | 141×93×53mm | 141×93×53mm | |
| Weight (incl. batteries) | 460g | 460g | |
| Op temperature | -40~+55°C | -40~+55°C | |
| Sto temperature | -50~+65°C | -50~+65°C | |
| IP rating | IP67 | IP67 | |
