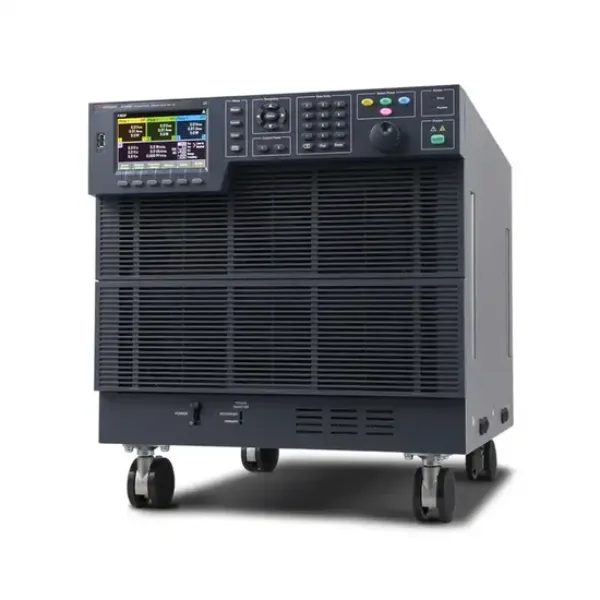

Both devices are three-phase AC power sources with an output voltage of up to 320 V RMS and power of 12 kVA. The main characteristics and differences are presented in the table below:

Specifications

Features

• Built-in tests for power network disturbance simulation.
• Harmonic analysis.
• Custom waveform generation.
• Protection against overcurrent, overvoltage, and overheating.
• Smooth start/stop functionality.



Applications

• AC6912H: With support for frequencies up to 5000 Hz, it is ideal for testing high-frequency equipment such as aviation electronics, as well as for applications requiring operation at higher-than-standard frequencies.
• AC6912L: Designed for standard applications with frequencies up to 550 Hz, including testing consumer electronics and other devices operating at standard frequencies.



Choosing Between AC6912H and AC6912L

The choice between AC6912H and AC6912L should be based on the frequency range requirements of your testing applications. If testing devices at frequencies above 550 Hz is required, AC6912H is recommended. For standard applications with frequencies up to 550 Hz, AC6912L is suitable.
