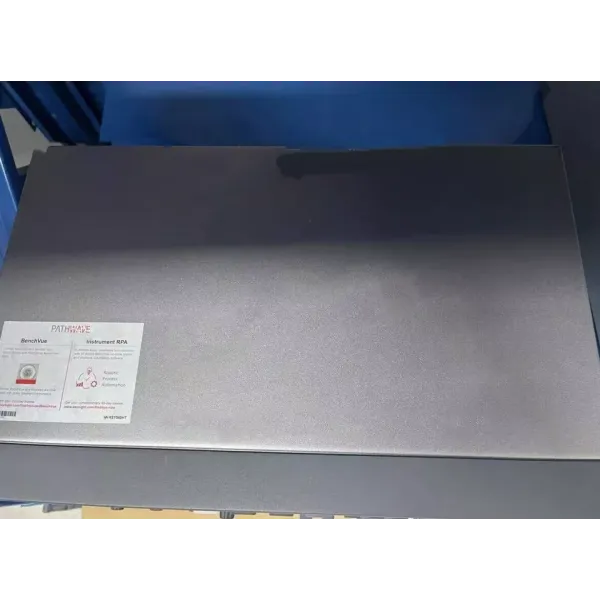

Keysight N6705C Power Analyzer Mainframe

Keysight N6705C is a modular DC power analyzer designed for research and development (R&D), combining the functionality of up to four advanced power supplies or electronic loads, as well as a digital multimeter (DMM), oscilloscope, arbitrary waveform generator (AWG), and data logger. It provides high performance in delivering and measuring DC voltage and current to the device under test (DUT).

Main Specifications:

• Configuration:
  • Four-slot mainframe supporting up to 600 W total power and up to 4 modules (modules sold separately).
  • Over 30 available DC power modules, including basic, high-performance, precision, and SMU modules.
• Measurement Functions:
  • Voltmeter: Accuracy up to 0.025% + 50 µV; resolution up to 18 bits.
  • Ammeter: Accuracy up to 0.025% + 8 nA; resolution up to 18 bits.
  • Oscilloscope: Voltage and current digitization with up to 200 kHz sampling rate, 512K points; resolution up to 18 bits.
  • Arbitrary Waveform Generator: Bandwidth up to 100 kHz, output power up to 500 W.
  • Data Logger: Measurement intervals from 20 µs to 60 s, with a maximum speed of 50,000 readings per second.
• Connectivity Interfaces: USB 2.0, LAN (10/100 Mbps), and GPIB; compliant with LXI Class C standard.

Additional Features:

• Intuitive user interface with physical controls for core functions.
• Large color graphical display for convenient visualization of complex data.
• Programmable via standard interfaces for test process automation.

Keysight N6705C provides researchers and developers with a powerful tool for efficient and precise power analysis, reducing setup and test execution time.
