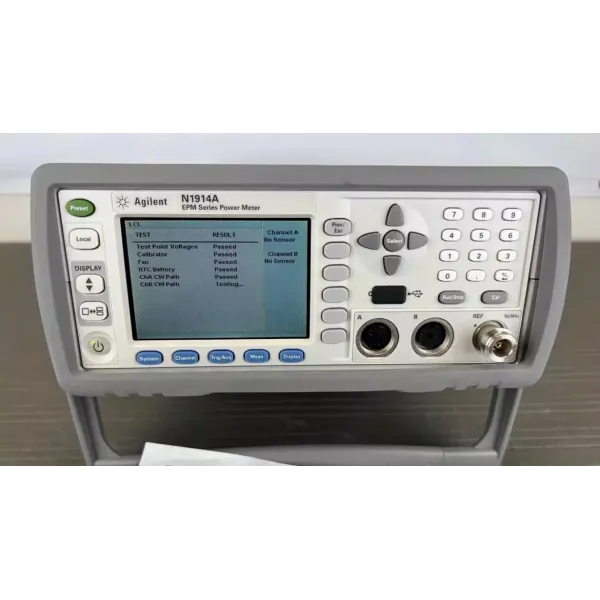

Keysight/Agilent N1914A EPM Series Dual Power Meter

Keysight (formerly Agilent) N1914A is a dual-channel power meter from the EPM Series, designed for high-precision power measurements in RF systems. This instrument allows simultaneous measurement of power on two independent channels, making it an ideal solution for comprehensive testing and calibration of RF components.

Technical Specifications

• Number of Channels: 2 (dual-channel)
• Power Measurement Range: Approximately from –70 dBm to +20 dBm for each channel (values may vary depending on configuration and applied attenuators)
• Measurement Accuracy: Typical accuracy of ±0.1 dB, ensuring highly reliable data
• Frequency Range: The instrument is designed for operation in the RF range; specific limits depend on available options
• Connectivity: GPIB and USB (optional, for remote control and integration into automated test systems)
• Display: Digital display with an auto-ranging function for fast and clear readout of measurement results

Key Features

• Dual-channel power measurement for simultaneous monitoring of two signals
• High accuracy and stability, essential for RF calibration and testing
• Auto-ranging function that quickly adapts to changes in input signal level
• Compact and robust design suitable for long-term operation in laboratory and production environments
• Support for remote control via standard HP-IB and USB interfaces

Applications

• Calibration of measurement equipment and power standards
• Laboratory research and testing of RF and microwave systems
• Testing of amplifiers, signal generators, and other electronic devices
• Quality control in manufacturing processes

The Keysight/Agilent N1914A EPM Series Dual Power Meter is a reliable, high-precision instrument that offers comprehensive power measurement capabilities on two channels in RF systems. Its functional versatility, high accuracy, and remote control options make it an excellent choice for professionals involved in testing, calibration, and diagnostics of electronic equipment.
