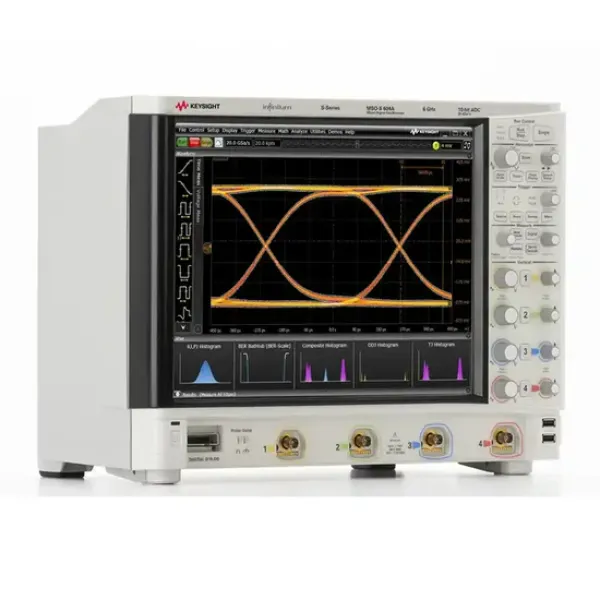

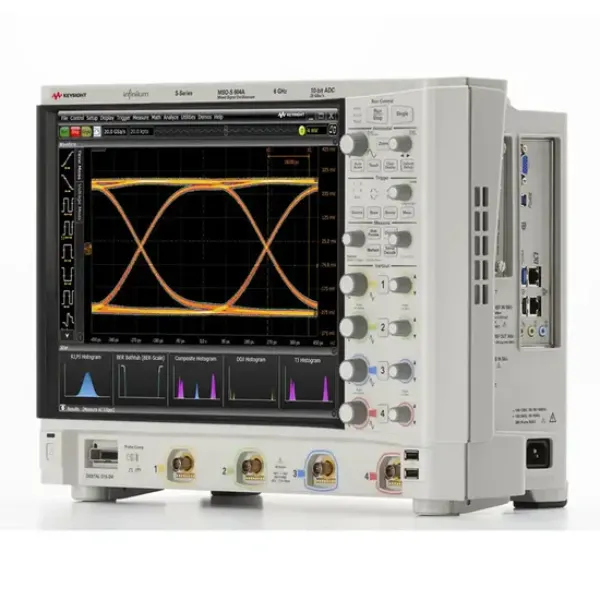

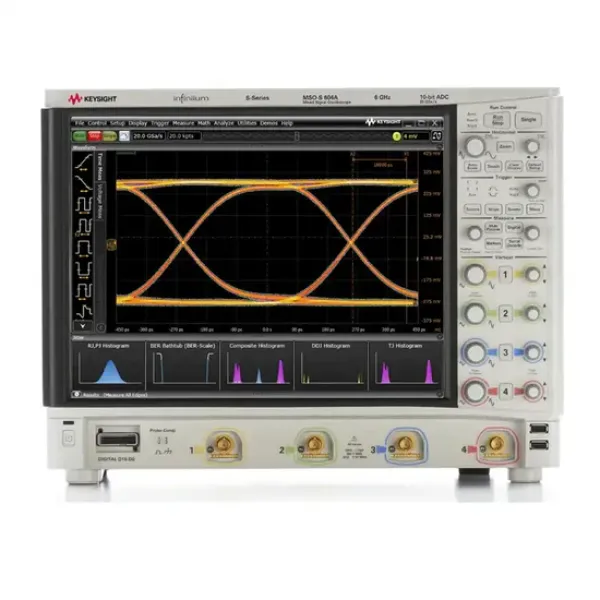

Keysight MSOS604A HD Oscilloscope

The Keysight MSOS604A from the Infiniium S-Series is a high-precision instrument designed for analyzing analog and digital signals. With its advanced features, it is an essential tool for engineers and technicians working on high-speed electronic designs.

Key Features:

• Bandwidth: 6 GHz (upgradeable to 8 GHz).
• Channels: 4 analog and 16 digital.
• Sampling Rate:
  • 20 GSa/s when using 2 channels.
  • 10 GSa/s when using all 4 channels.
• Memory Depth: Standard 100 Mpts per channel, expandable to 800 Mpts.
• Display: 15-inch touch screen with multitouch support.
• ADC Resolution: 10-bit for more accurate signal representation.
• Signal Quality: Effective Number of Bits (ENOB) is 8.1 bits at full bandwidth.

Included Accessories:

• Four N2873A passive probes with 500 MHz bandwidth.
• Probe accessory kit.
• Keysight I/O libraries suite.
• Localized power cord and front panel cover.
• 8 GHz BNC calibration cable.
• Keyboard and mouse.
• User and programmer’s guide (preloaded on the oscilloscope’s drive).
• 16-channel logic probe, MSO cable, and MSO calibration fixture.



The MSOS604A oscilloscope supports a wide range of software for protocol analysis, compliance testing, and other tasks. With its high accuracy and advanced analysis capabilities, it is a powerful tool for professionals working on advanced electronic projects.
