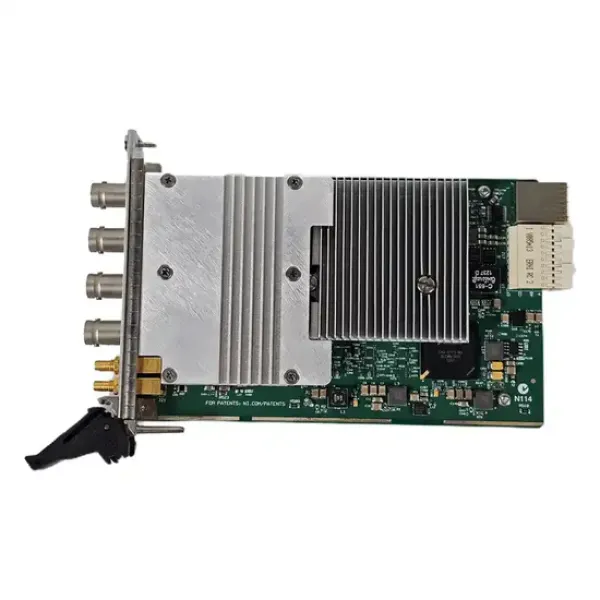

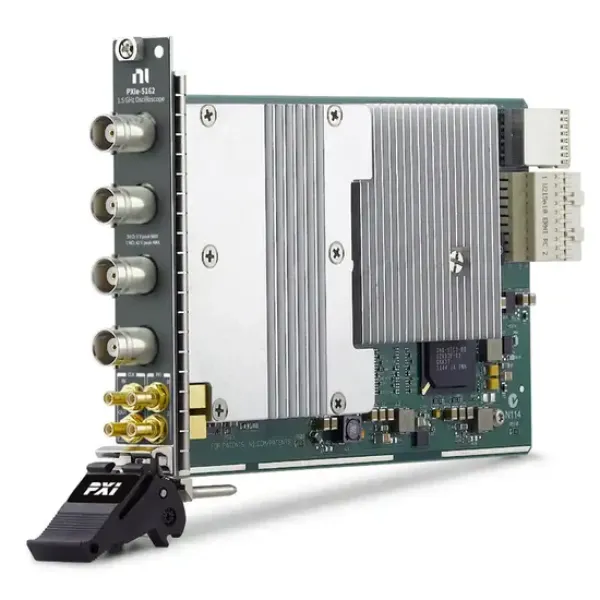

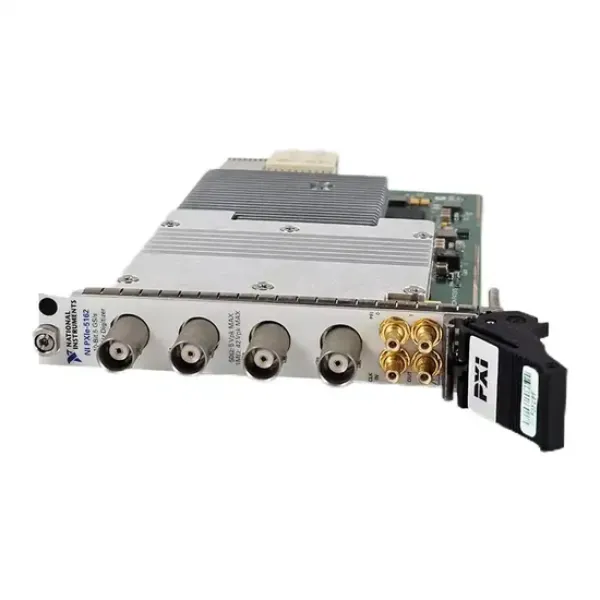

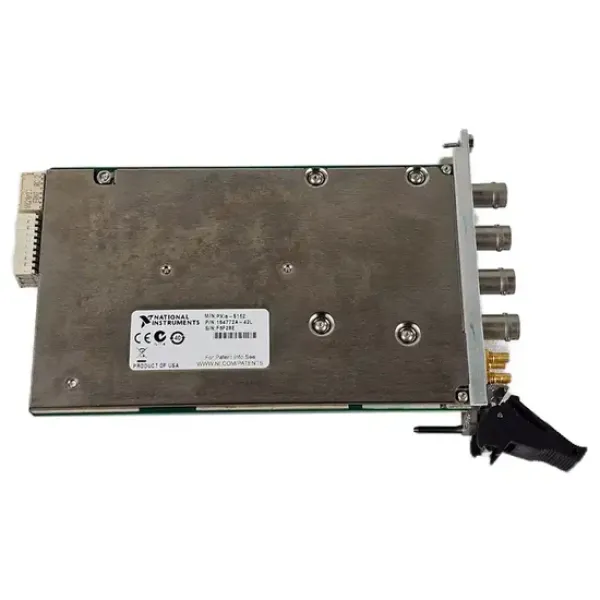

National Instruments PXIe-5162 Oscilloscope/Digitizer

The National Instruments PXIe-5162 oscilloscope/digitizer is a high-performance modular instrument designed for measuring and analyzing electrical signals in various applications.

Key Features:

• Number of Channels: 2 or 4
• Maximum Sampling Rate: 5 GS/s
• Bandwidth: 1.5 GHz
• Analog Input Resolution: 10-bit
• Input Impedance: 50 Ω
• Input Voltage Range: -5 V to 5 V
• Input Coupling Types: AC and DC
• Trigger Modes: Various modes, including edge, level, software trigger, and others
• Onboard Memory: 2 GB
• Maximum Power Consumption: Approximately 21.63 W
• Dimensions: 8.4 × 0.8 × 5.1 inches (21.3 × 2.0 × 13.0 cm)
• Weight: 15 oz (approximately 425 g)



The PXIe-5162 supports high-level synchronization with other PXI modules, which is especially useful for automated and semi-automated test applications. It provides high data throughput, enabling efficient processing of large volumes of information.

For control and configuration, the PXIe-5162 is recommended to be used with the NI-SCOPE driver, which provides interfaces for various development environments, including LabVIEW, LabWindows™/CVI™, and others. Additionally, the NI-SCOPE Soft Front Panel software can be used for interactive control of the instrument.

Thus, the PXIe-5162 oscilloscope/digitizer from National Instruments is a powerful and flexible tool for conducting precise measurements in various fields.
