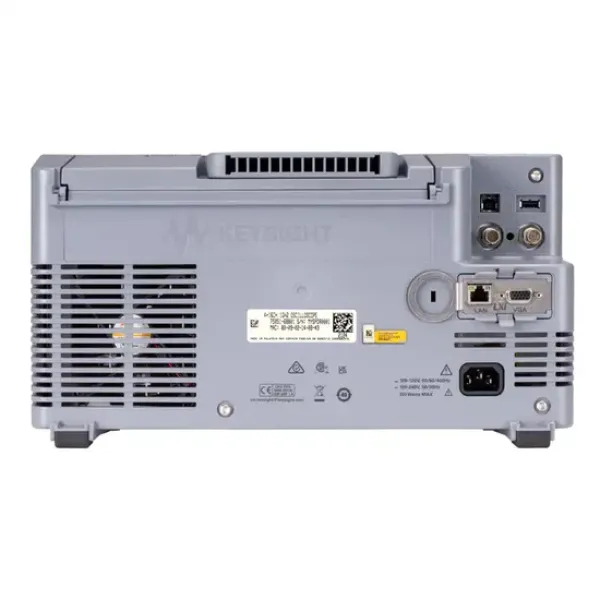

Keysight DSOX3102G Oscilloscope

The Keysight DSOX3102G oscilloscope is a device from the InfiniiVision 3000G X-Series with a bandwidth of 1 GHz and two analog channels. It features an 8.5-inch capacitive touch screen, providing an intuitive interface for quick and convenient operation.

Key Specifications:

• Sample Rate: up to 5 GSa/s
• Memory Depth: 4 Mpts
• Waveform Update Rate: up to 1,000,000 waveforms per second
• Zone Touch Triggering: allows quick isolation of desired signals by drawing a zone on the screen



Built-in Features:

• Embedded Software (D3000GENB): supports triggering and decoding for I2C, SPI, UART, RS232/485, and I2S
• 20 MHz Function/Arbitrary Waveform Generator: enables the creation of various test signals
• Standard Probe Set: includes N2843A passive probes (500 MHz, 10:1 attenuation), one per channel



Additional Capabilities:

• Full Upgradability: add bandwidth, digital channels, and advanced application software
• Advanced Analysis Tools: waveform and measurement histograms, mask testing, and frequency response analysis (Bode plots)



Included Accessories:

• 3-year warranty (90 days for non-serialized accessories such as passive probes)
• Calibration certificate with a 2-year interval
• Secure data deletion feature



The Keysight DSOX3102G oscilloscope is ideal for R&D debugging, testing low-speed serial interfaces, power integrity analysis, and educational purposes.
