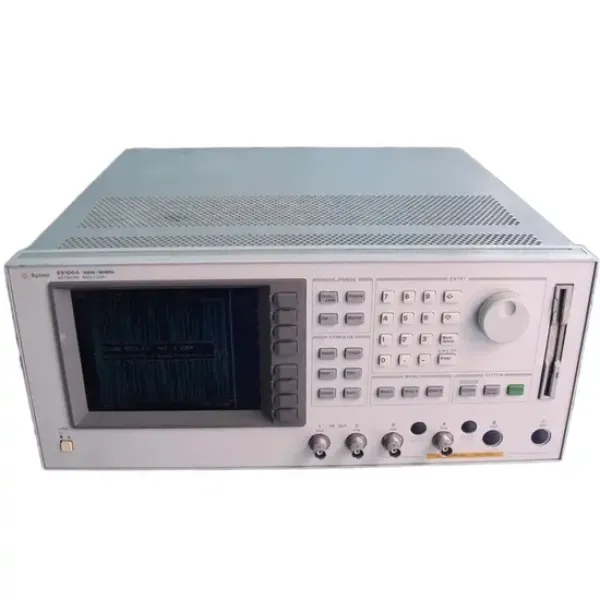

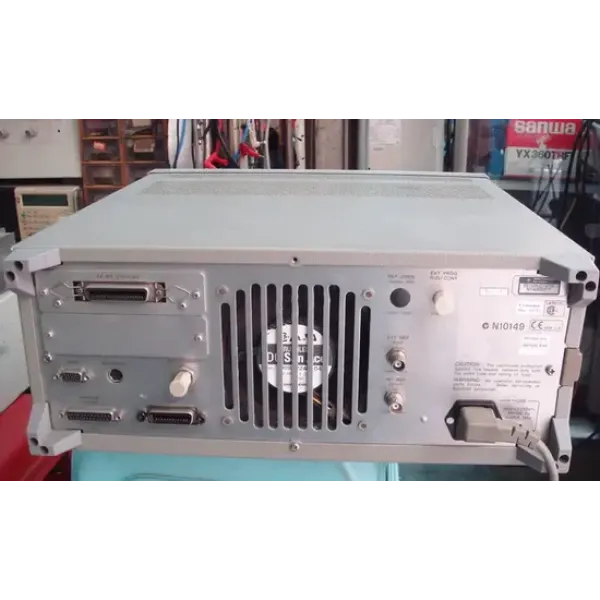

Agilent E5100A - Network Analyzer

The Agilent E5100A is designed for high-speed testing of electronic components such as resonators and filters, operating in the frequency range of 10 kHz to 180 MHz.

Main Features:

• Frequency Range: 10 kHz – 180 MHz.
• Measurement Speed: Up to 0.04 ms/point with an IF bandwidth of 30 kHz.
• Dynamic Range: 120 dB at an IF bandwidth of 1 kHz.
• IF Bandwidth: Adjustable from 10 Hz to 30 kHz with steps of 1, 1.5, 2, 3, 4, 5, 8.
• Display: 6.5-inch color LCD screen.
• Calibration Capabilities: Advanced calibration functions ensure high measurement accuracy.
• Interfaces: Support for external keyboard and VGA display.



Features:

• High-speed processor and quick signal analysis commands enhance productivity.
• Low noise levels and fine IF bandwidth adjustments ensure stable and accurate measurements.
• Signal shape analysis commands for resonator testing, extracting parameters such as resonant frequency and impedance.
• Phase Tracking option improves performance for drive level dependency (DLD) measurements of crystals.
• List Sweep feature reduces measurement time when testing filters by allowing independent frequency ranges and power levels for each segment.



The Agilent E5100A is a versatile and cost-effective network analyzer ideal for production lines of electronic component manufacturers, particularly for resonators and filters.
