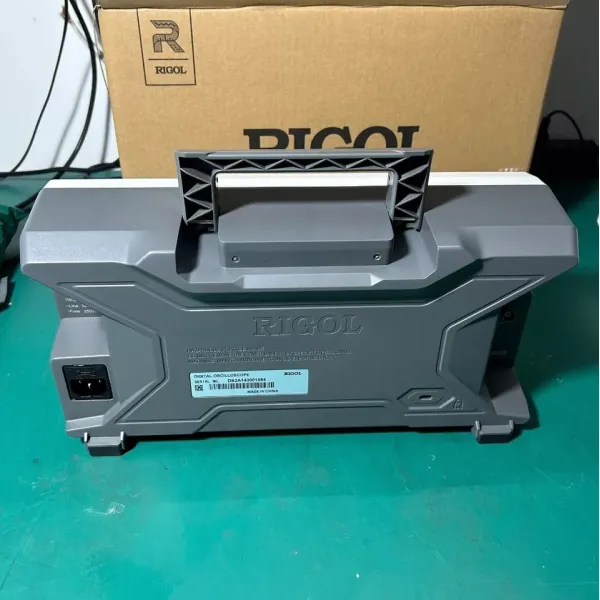

Rigol DS2302 Digital Oscilloscope

The Rigol DS2302 is a 2-channel digital oscilloscope designed for a wide range of applications, from electronic design and testing to educational purposes. With an analog bandwidth of 300 MHz and a maximum sample rate of up to 2 GS/s, it provides accurate capture of high-speed signals.

Main Specifications

• Channels: 2
• Bandwidth: 300 MHz
• Maximum Sample Rate: 2 GS/s
• Display: Large high-resolution screen (size may vary by model)
• Memory Depth: Deep memory for long waveform captures (specific depth depends on configuration)
• Trigger Functions: Advanced trigger modes including edge, pulse, video, and more
• Connectivity: USB, LAN, and optional GPIB for remote control and data logging

Features

• Intuitive user interface with a clear, bright display for waveform analysis
• Automatic measurement and waveform math functions for efficient analysis
• Multiple trigger options to capture complex signal events accurately
• Compact and lightweight design, making it suitable for both laboratory and field use

Applications

Ideal for electronic design, troubleshooting, and education, the Rigol DS2302 is well-suited for analyzing high-speed digital signals and RF applications. Its high bandwidth and fast sampling rate ensure reliable performance in a variety of testing scenarios.

With its 300 MHz bandwidth and 2 GS/s sampling capability, the Rigol DS2302 digital oscilloscope offers powerful performance and advanced features at an affordable price point, making it an excellent choice for both professionals and hobbyists alike.
