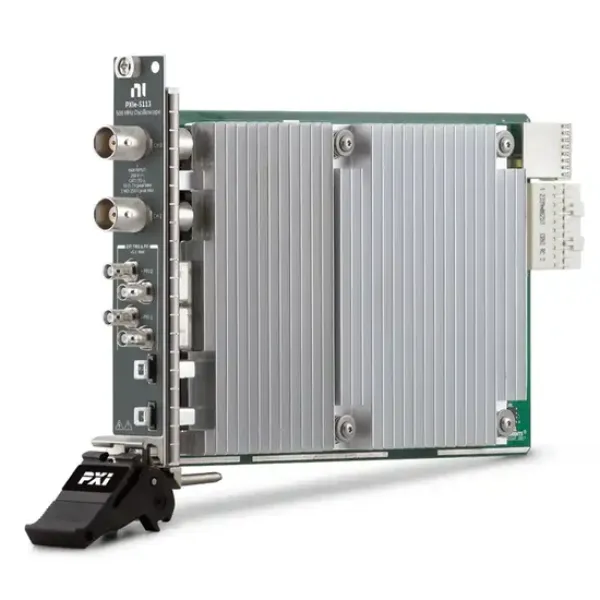

National Instruments PXIe-5113 Oscilloscope

The National Instruments PXIe-5113 oscilloscope is a high-performance modular instrument designed for measuring and analyzing electrical signals in various applications.

Key Features:

• Number of Channels: 2
• Maximum Sampling Rate: 3 GS/s
• Bandwidth: 500 MHz
• Analog Input Resolution: 8-bit
• Input Impedance: 50 Ω or 1 MΩ
• Input Voltage Range: -20 V to 20 V
• Input Coupling Types: AC and DC
• Trigger Modes: Multiple modes
• Onboard Memory: 64 MB or 512 MB
• Maximum Power Consumption: 20 W
• Dimensions: 0.8 in × 5.1 in × 8.5 in (2.0 cm × 13.0 cm × 21.6 cm)
• Weight: 380 g



The PXIe-5113 oscilloscope supports high-level synchronization with other PXI modules, which is especially useful for automated and semi-automated test applications. It also provides high data throughput, enabling efficient processing of large volumes of information.

For control and configuration, the PXIe-5113 is recommended to be used with the NI-SCOPE driver, which provides interfaces for various development environments, including LabVIEW, LabWindows™/CVI™, and others. Additionally, the InstrumentStudio software can be used for interactive control of the device.

Thus, the PXIe-5113 oscilloscope from National Instruments is a powerful and flexible tool for conducting precise measurements in various fields.
