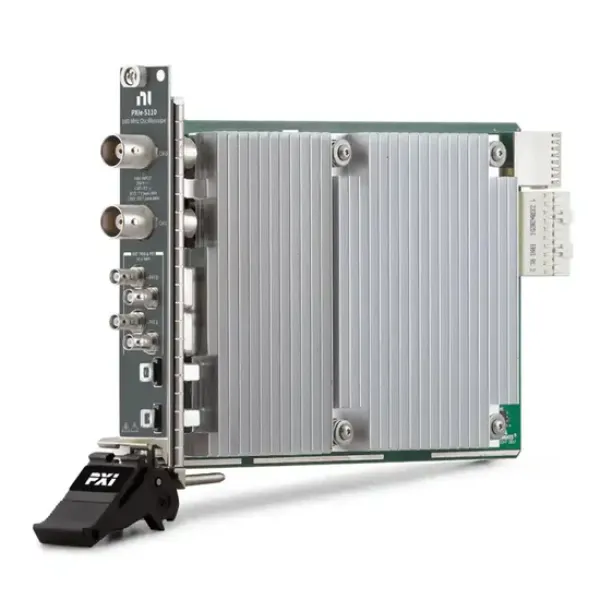

National Instruments PXIe-5110 Oscilloscope

The National Instruments PXIe-5110 oscilloscope is a high-performance instrument designed for precise measurements in various applications.

Key Features:

• Number of Channels: 2
• Maximum Sampling Rate: 1 GS/s
• Bandwidth: 100 MHz
• Analog Input Resolution: 8-bit
• Input Impedance: 50 Ω or 1 MΩ
• Input Voltage Range: -20 V to 20 V
• Input Coupling Types: AC and DC
• Trigger Modes: Multiple modes
• Maximum Power Consumption: 30 W
• Dimensions: 0.8 in × 5.1 in × 8.5 in
• Weight: 13.4 oz



This oscilloscope supports high-level synchronization with other PXI modules, which is especially useful for automated and semi-automated test applications. It also provides high data throughput, enabling efficient processing of large amounts of information.

For control and configuration, the PXIe-5110 is recommended to be used with the NI-SCOPE driver, which provides interfaces for various development environments, including LabVIEW, LabWindows™/CVI™, and others. Additionally, the InstrumentStudio software can be used for interactive control of the device.

For more information and to download the user manual, you can visit the Apex Waves website.

Thus, the PXIe-5110 oscilloscope from National Instruments is a powerful and flexible tool for conducting precise measurements in various fields.
