National Instruments PXIe-5171 Oscilloscope

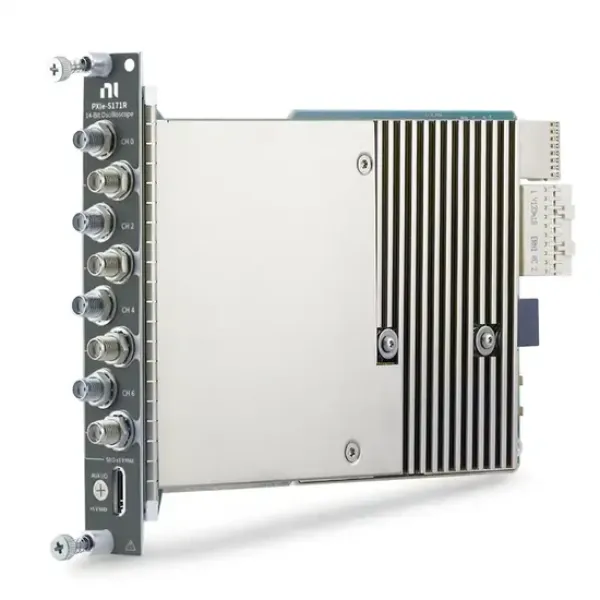

The National Instruments PXIe-5171 oscilloscope is a high-density PXI oscilloscope equipped with eight channels that digitize simultaneously, offering flexible settings for coupling and voltage range. It features a user-programmable Kintex-7 410T FPGA, allowing for custom trigger implementation and signal processing.

Key Features:

• Number of Channels: 8
• Maximum Sampling Rate: 250 MS/s
• Bandwidth: 250 MHz
• Analog Input Resolution: 14-bit
• Input Impedance: 50 Ω
• Input Voltage Range: -2.5 V to 2.5 V
• Input Coupling Types: AC and DC
• Onboard Memory: 1.5 GB
• Dimensions: 7.3 × 0.8 × 5.1 inches (18.5 × 2.0 × 13.0 cm)
• Weight: 17.1 oz (approximately 485 g)



The PXIe-5171 supports high-speed data transfer via the PXI Express Gen2 x8 interface, providing bandwidth up to 3.2 GB/s. Users can program the FPGA using LabVIEW or HDL tools to implement custom signal processing or analysis.

For control and configuration, the PXIe-5171 is recommended to be used with the NI-SCOPE driver, which provides interfaces for various development environments, including LabVIEW and others. Additionally, the NI-SCOPE Soft Front Panel software can be used for interactive control of the instrument.

Thus, the PXIe-5171 oscilloscope from National Instruments is a powerful and flexible tool for conducting precise measurements in various fields.
