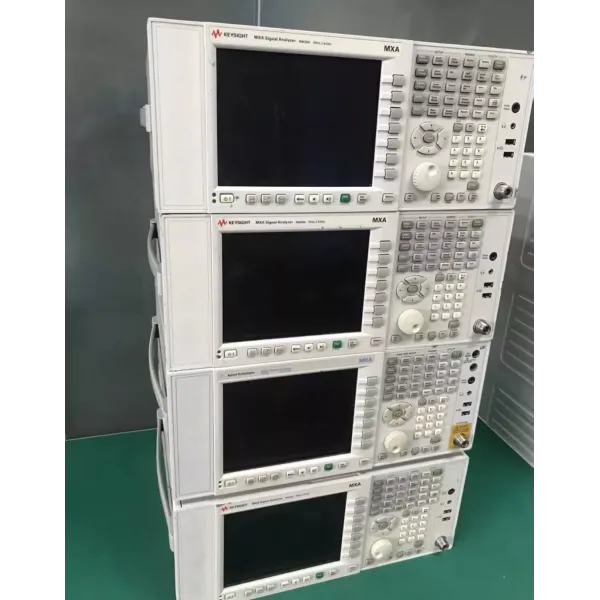

Keysight N9020A MXA Spectrum Analyzer

The Keysight N9020A MXA spectrum analyzer is a high-performance instrument designed for precise signal measurement and analysis in the frequency range from 10 Hz to 26.5 GHz. It supports an analysis bandwidth of up to 160 MHz, making it highly effective for testing various wireless standards and communication formats.

Main Specifications:

• Frequency Range: 10 Hz – 26.5 GHz
• Analysis Bandwidth: up to 160 MHz
• Absolute Amplitude Accuracy: ±0.23 dB
• Third-Order Intermodulation (TOI): +16 dBm
• Displayed Average Noise Level (DANL): -166 dBm
• Interfaces: USB 2.0, LAN 1000Base-T, GPIB

Additional Features:

The instrument is equipped with a fast scanning function, reducing test time and increasing measurement efficiency. Support for over 25 measurement applications allows the analyzer to be adapted for various tasks, including cellular and wireless network analysis, digital video, and general-purpose measurements.

For deeper signal analysis, the PathWave 89600 VSA software is available, expanding the device’s capabilities in vector signal analysis. Additionally, the analyzer supports real-time spectrum analysis, enabling the capture and evaluation of transient or short-duration signals.
