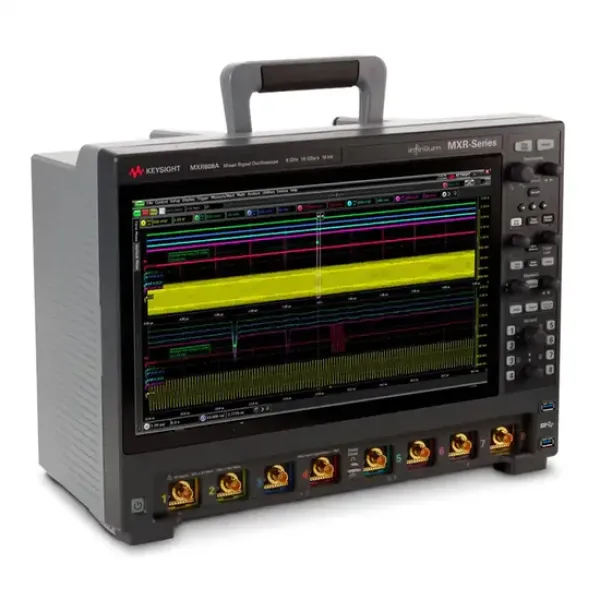

Keysight MXR608A and MXR608B Infiniium Series Oscilloscopes
Brand: Keysight
Product Code: MXR608A and MXR608B
All about product
Description
Reviews
0
Keysight MXR608A and MXR608B Infiniium Series Oscilloscopes
Description
Keysight MXR608A and MXR608B Oscilloscopes
Keysight MXR608A Infiniium MXR Series Oscilloscope
The Keysight MXR608A oscilloscope provides a 6 GHz bandwidth on all 8 analog channels.
It integrates up to eight instruments in one device, including an oscilloscope, logic analyzer, protocol analyzer, real-time spectrum analyzer, and signal generator.
With hardware-accelerated waveform rendering using ASIC technology from the Infiniium UXR-Series, the MXR608A delivers higher test speeds.
The device supports precise measurements with an effective number of bits (ENOB) up to 9.0 and a noise level as low as 43 µV.
The maximum memory depth is 1.6 Gpts. The oscilloscope is fully upgradeable, including bandwidth expansion and channel upgrades.
Keysight MXR608B Infiniium MXR B-Series Oscilloscope
The MXR608B model retains all the advantages of the MXR608A and additionally offers:
- Up to 70% faster jitter analysis.
- Up to 65% faster power integrity analysis.
- Up to 45% faster FFT processing.
- Up to 15% faster USB 2.0 compliance testing.
Additionally, the standard configuration includes InfiniiScan and a built-in signal generator with a frequency of up to 50 MHz.
Comparison Table of Key Specifications
| Specification | Keysight MXR608A | Keysight MXR608B |
|---|---|---|
| Bandwidth | 6 GHz on all 8 analog channels | 6 GHz on all 8 channels |
| Number of Channels | 8 analog | 8 analog |
| Maximum Sampling Rate | 16 GSa/s | 16 GSa/s |
| Memory Depth | 1.6 Gpts | 1.6 Gpts |
| ADC Resolution | 10-bit | 10-bit |
| Instrument Integration | 8-in-1: oscilloscope, logic analyzer, protocol analyzer, real-time spectrum analyzer, signal generator | 8-in-1: oscilloscope, logic analyzer, protocol analyzer, real-time spectrum analyzer, signal generator |
| Hardware Acceleration | Yes | Yes |
| Additional Features | Fully upgradeable, including bandwidth and channel expansion | InfiniiScan, built-in 50 MHz signal generator, 50 MHz frequency response analyzer |
