Keysight MXR604A and MXR604B Infiniium Series Oscilloscopes
Description
Keysight MXR604A and MXR604B Oscilloscopes

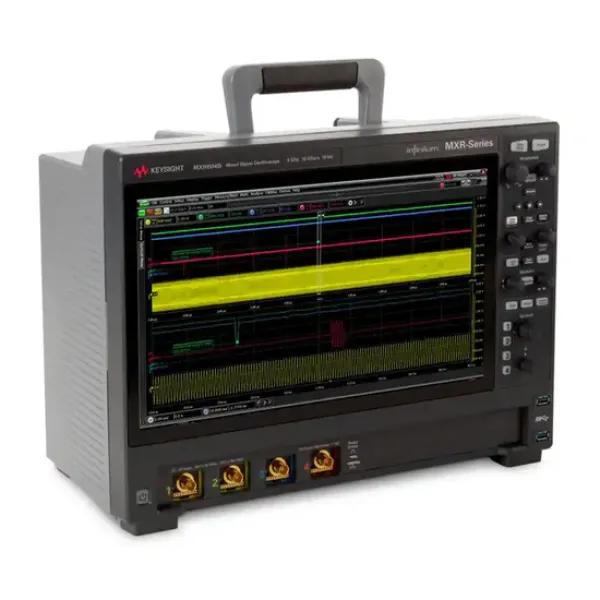

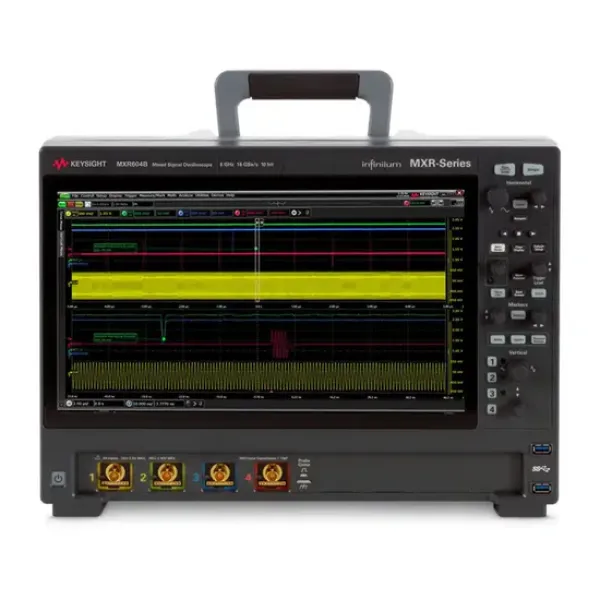

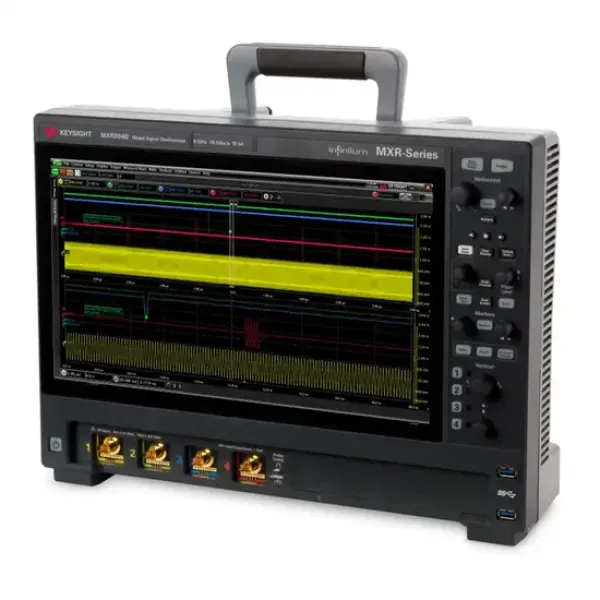

Keysight MXR604A Infiniium MXR Series Oscilloscope
The Keysight MXR604A oscilloscope provides a 6 GHz bandwidth on all 4 analog channels.
It integrates up to eight instruments in one device, including an oscilloscope, logic analyzer, protocol analyzer, real-time spectrum analyzer, and signal generator.
With hardware-accelerated waveform rendering and full upgradeability, including expansion to 8 channels, the MXR604A ensures high performance and flexibility.
Keysight MXR604B Infiniium MXR B-Series Oscilloscope
The MXR604B model retains all the advantages of the MXR604A and additionally offers:
- Up to 70% faster jitter analysis.
- Up to 65% faster power integrity analysis.
- Up to 45% faster FFT processing.
- Up to 15% faster USB 2.0 compliance testing.
Additionally, the standard configuration includes InfiniiScan and a built-in signal generator with a frequency of up to 50 MHz.
Comparison Table of Key Specifications
| Specification | Keysight MXR604A | Keysight MXR604B |
|---|---|---|
| Bandwidth | 6 GHz on all 4 channels | 6 GHz on all 4 channels |
| Number of Channels | 4 analog | 4 analog |
| Maximum Sampling Rate | 16 GSa/s | 16 GSa/s |
| Memory Depth | 200 Mpts per channel (standard), expandable to 400 Mpts or 1.6 Gpts | 200 Mpts per channel (standard), expandable to 400 Mpts or 1.6 Gpts |
| ADC Resolution | 10-bit | 10-bit |
| Instrument Integration | 8-in-1: oscilloscope, logic analyzer, protocol analyzer, real-time spectrum analyzer, signal generator | 8-in-1: oscilloscope, logic analyzer, protocol analyzer, real-time spectrum analyzer, signal generator |
| Hardware Acceleration | Yes | Yes |
| Additional Features | Fully upgradeable, including expansion to 8 channels | InfiniiScan, built-in 50 MHz signal generator, 50 MHz frequency response analyzer |
