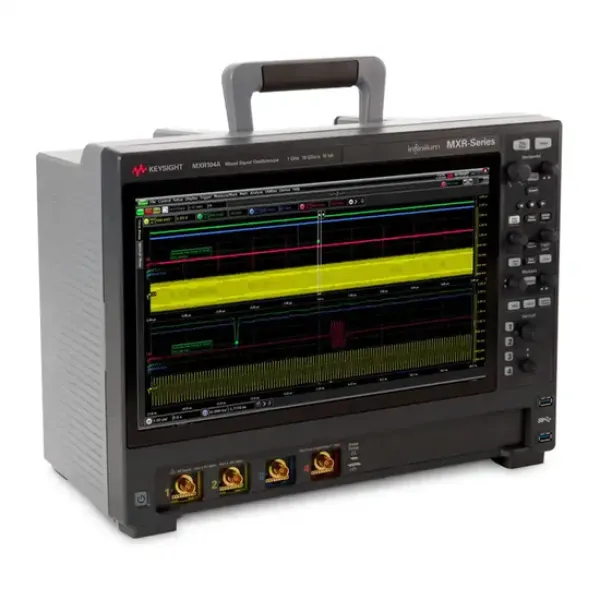

Keysight MXR104A and MXR104B Infiniium MXR Series Oscilloscopes
Brand: Keysight
Product Code: MXR104A / MXR104B
All about product
Description
Reviews
0
Keysight MXR104A and MXR104B Infiniium MXR Series Oscilloscopes
Description
Comparison of Keysight MXR104A and MXR104B Oscilloscopes
Keysight MXR104A Infiniium MXR Series Oscilloscope
The MXR104A oscilloscope offers a bandwidth of 1 GHz on all four channels with a sampling rate of 16 GSa/s. It integrates eight instruments into a single device:
- Oscilloscope
- Logic analyzer
- Protocol analyzer
- Digital voltmeter
- Frequency counter
- Real-time spectrum analyzer
- Frequency response analyzer
- Signal generator
The device is equipped with a 10-bit ADC with an effective number of bits (ENOB) up to 9.0 and a noise level as low as 43 μV. The maximum memory depth is 1.6 Gpts. The model is fully upgradeable, including bandwidth expansion up to 6 GHz and up to 8 channels. Standard features include InfiniiScan and Wave Gen.
Keysight MXR104B Infiniium MXR B-Series Oscilloscope
The MXR104B model has the same 1 GHz bandwidth and similar specifications but offers significant performance improvements:
- Up to 70% faster jitter analysis
- Up to 65% faster power integrity analysis
- Up to 45% faster FFT processing
- Up to 15% faster USB 2.0 compliance testing
Like the MXR104A, this model includes a 10-bit ADC with ENOB up to 9.0 and a noise level of 43 μV, and it is fully upgradeable.
Comparison Table
| Feature | Keysight MXR104A | Keysight MXR104B |
|---|---|---|
| Bandwidth | 1 GHz on 4 channels | 1 GHz on 4 channels |
| Number of channels | 4 | 4 |
| Maximum sampling rate | 16 GSa/s | 16 GSa/s |
| Maximum memory depth | 1.6 Gpts | 1.6 Gpts |
| ADC Resolution | 10-bit (up to 16-bit in high-resolution mode) | 10-bit (up to 16-bit in high-resolution mode) |
| Effective Number of Bits (ENOB) | Up to 9.0 | Up to 9.0 |
| Noise Level | As low as 43 μV | As low as 43 μV |
| Integrated Instruments | 8-in-1 | 8-in-1 |
| Upgradeable | Up to 6 GHz and 8 channels | Up to 6 GHz and 8 channels |
| Standard Features | InfiniiScan, Wave Gen | InfiniiScan, Wave Gen |
| Performance Enhancements | None | Up to 70% faster jitter analysis, 65% faster power integrity analysis, 45% faster FFT processing, 15% faster USB 2.0 compliance testing |
Conclusion
The main difference between the MXR104A and MXR104B models is performance. The MXR104B provides significant improvements in signal analysis and testing speed, making it more efficient for complex tasks.
