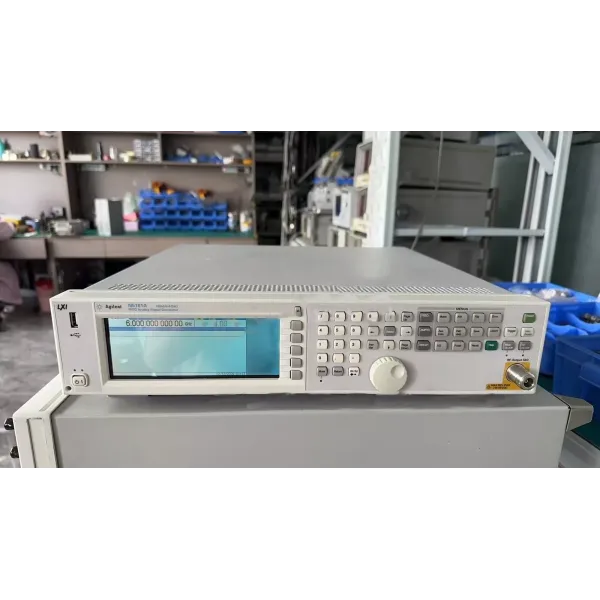

HP/KEYSIGHT/Agilent N5181A RF Analog Signal Generator

The Keysight/Agilent N5181A RF analog signal generator from the MXG series is designed to generate high-frequency signals in the range of 100 kHz to 6 GHz.

It provides high accuracy and reliability, making it suitable for use in both research laboratories and production lines.

Main Specifications:

• Frequency Range: 100 kHz – 6 GHz
• Output Power: up to +23 dBm at 1 GHz
• Phase Noise: ≤ -121 dBc/Hz at 1 GHz and 20 kHz offset
• Frequency Switching Speed:
  • ≤ 1.2 ms in SCPI mode
  • ≤ 900 µs when switching frequency and amplitude simultaneously in list mode
• Supported Modulation Types: AM, FM, phase modulation (ΦM), and pulse modulation
• Interfaces: 100BaseT LAN, USB 2.0, and GPIB; compatible with LXI Class B

Additional Features:

The N5181A generator supports digital step and list sweep with simultaneous frequency and power switching, enhancing testing efficiency.

Additionally, it is backward compatible with ESG, PSG, 8648 series generators, as well as signal generators from other manufacturers, making integration into existing systems easier.
