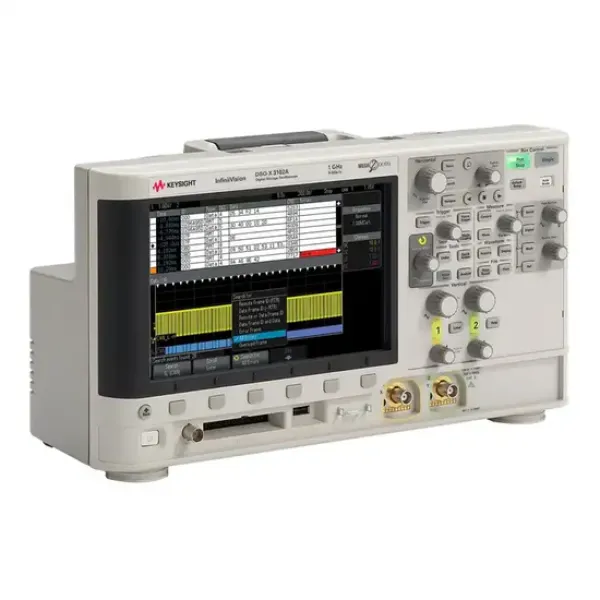

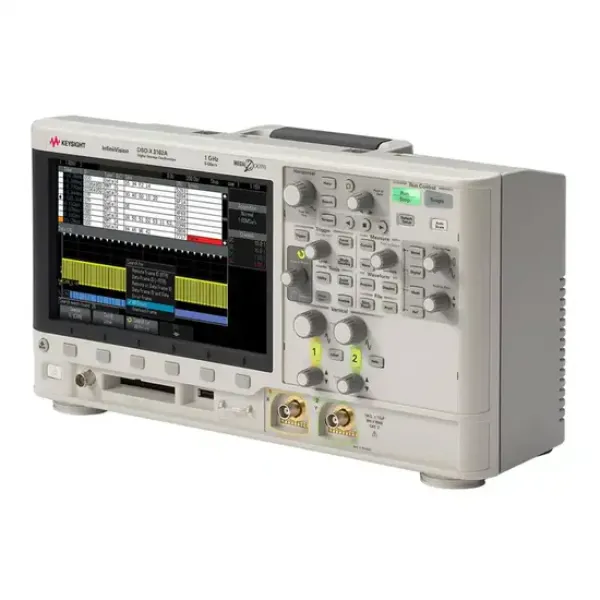

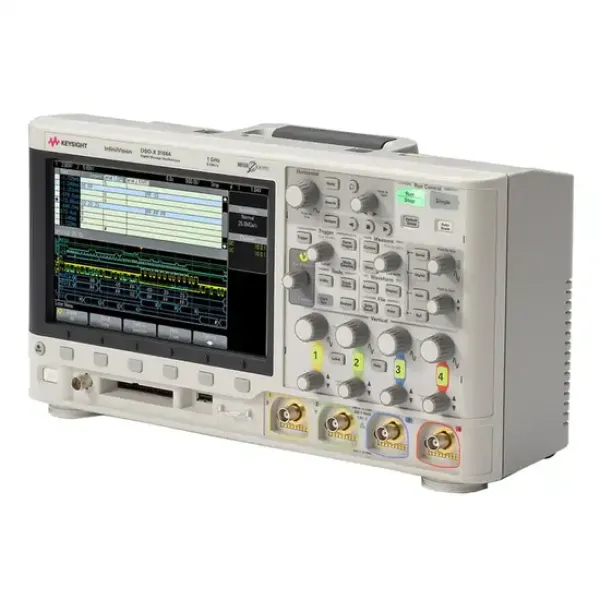

Keysight DSOX3104A Oscilloscope

The Keysight DSOX3104A oscilloscope is a device from the InfiniiVision 3000 X-Series with a bandwidth of 1 GHz and four analog channels. It features an 8.5-inch WVGA display, providing clear signal visualization.

Key Specifications:

• Bandwidth: 1 GHz
• Analog Channels: 4
• Sample Rate: up to 5 GSa/s
• Memory Depth: standard 2 Mpts, optional upgrade to 4 Mpts
• Waveform Update Rate: up to 1,000,000 waveforms per second



Features:

• MegaZoom IV Smart Memory Technology: enhances waveform update rates and enables deep memory analysis
• Upgradability: add digital channels, a 20 MHz arbitrary waveform generator, a 3-digit voltmeter, serial protocol triggering and analysis, segmented memory, and mask testing as needed
• Connectivity: USB host and device ports; optional LAN, VGA, and GPIB interfaces



Included Accessories:

• One N2890A passive probe (500 MHz, 10:1 attenuation) per channel
• Localized power cord
• Calibration certificate with a 2-year interval
• 3-year warranty (90 days for unserialized accessories)



The Keysight DSOX3104A oscilloscope is ideal for engineers and researchers requiring high-performance signal analysis across multiple channels.
