Keysight DSOX3032G Oscilloscope

The Keysight DSOX3032G oscilloscope is a digital device from the InfiniiVision 3000G X-Series with a bandwidth of 350 MHz and two analog channels.

Main Features:

• Sample Rate: up to 5 GSa/s
• Memory Depth: 4 Mpts
• Waveform Update Rate: up to 1,000,000 waveforms per second

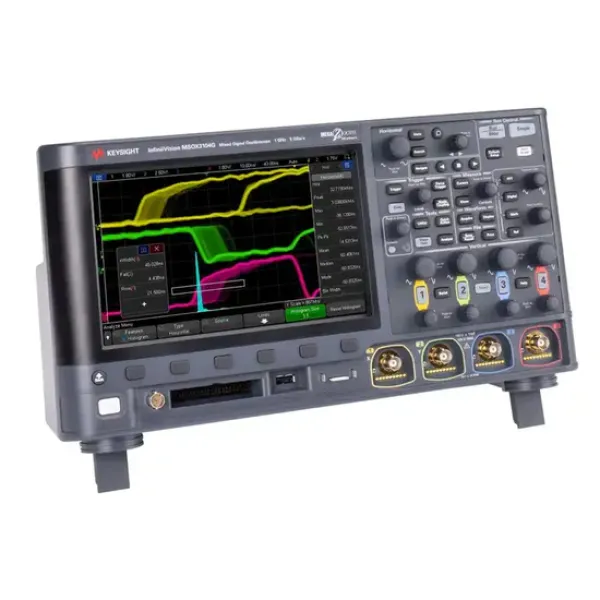

• Display: 8.5-inch capacitive touch screen
• Zone Touch Triggering: allows quick isolation of desired signals



Additional Features:

• Built-in Signal Generator (WaveGen): generates standard and arbitrary waveform signals with a frequency up to 20 MHz
• Protocol Support: triggering and decoding for I²C, SPI, UART/RS232/RS485, I²S, and USB-PD
• Mask Testing: the ability to test signals against a predefined mask
• Bode Plot Analysis: evaluates amplitude-frequency characteristics of circuits



Included Accessories:

• Passive probe N2843A (500 MHz, 10:1 attenuation) for each channel

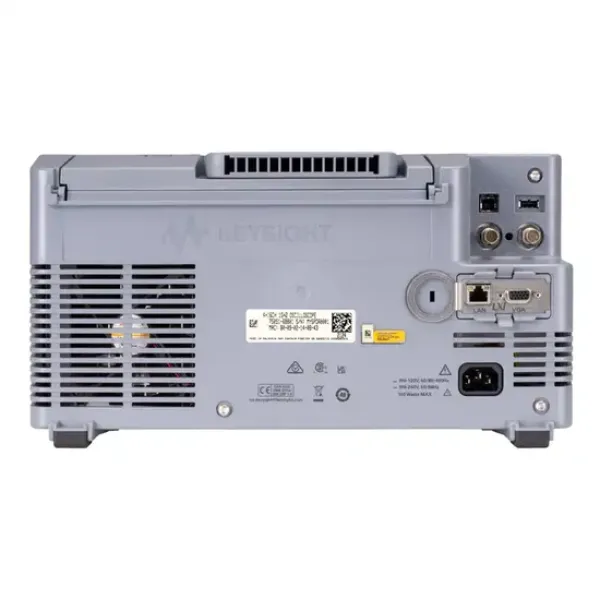

• Built-in tools: oscilloscope with LAN/VGA connectivity, protocol analyzer, Bode plot analyzer, 20 MHz arbitrary waveform generator, 3-digit voltmeter, and 8-digit counter
