Keysight DSOX3012T InfiniiVision 3000T Series Digital Oscilloscope
Brand: Keysight
Product Code: DSOX3012T
All about product
Description
Reviews
0
Keysight DSOX3012T InfiniiVision 3000T Series Digital Oscilloscope
Description

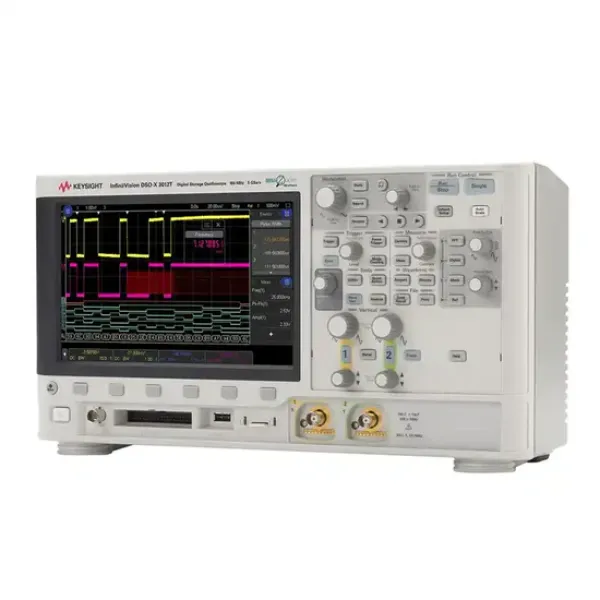

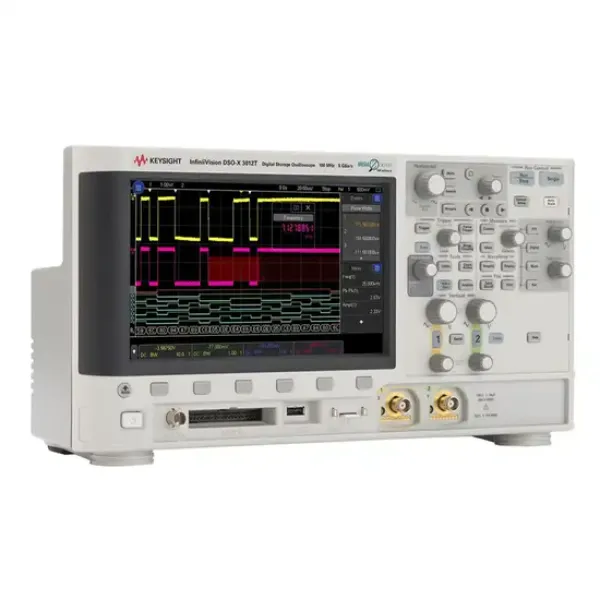

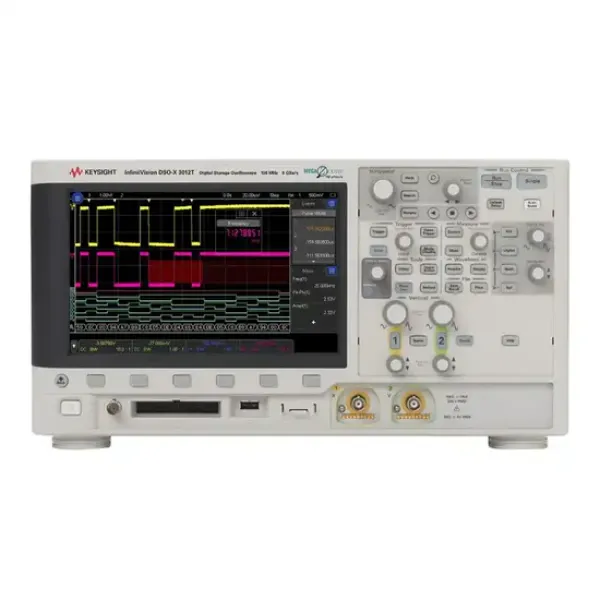

Keysight DSOX3012T Oscilloscope
The Keysight DSOX3012T oscilloscope is a digital device from the InfiniiVision 3000T X series with a bandwidth of 100 MHz and two analog channels.
Main Features:
- Sample Rate: up to 5 GSa/s
- Memory Depth: 4 Mpts
- Display: 8.5-inch capacitive touch screen with a resolution of 800×480 pixels
- Waveform Update Rate: up to 1,000,000 waveforms per second
- Input Impedance: 1 MΩ/50 Ω
- Power Supply: 100–240 V AC
- Dimensions: 381×204×142 mm
- Weight: 4.0 kg
Additional Features:
- Built-in Signal Generator (optional): generates standard and arbitrary waveform signals with a frequency up to 20 MHz
- Protocol Support (optional): triggering and decoding for I²C, SPI, UART/RS232/RS485, CAN, LIN, and others
- Mask Testing (optional): the ability to test signals against a predefined mask
The DSOX3012T oscilloscope is suitable for engineers and researchers requiring precise and fast measurements.
