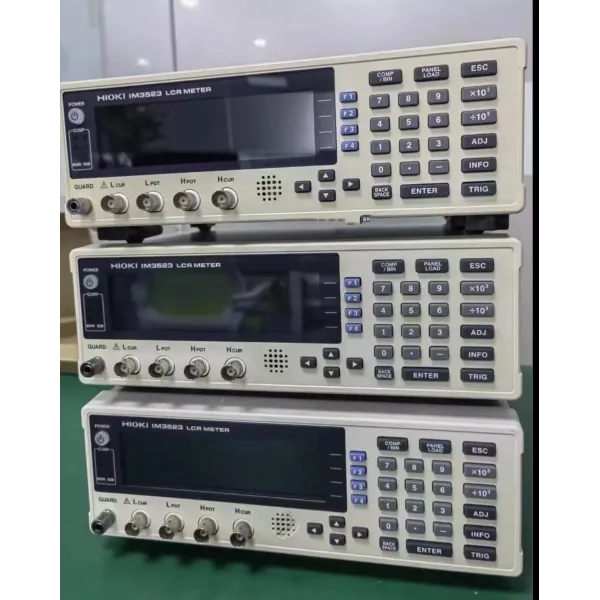

Hioki IM3523 LCR Meter

The Hioki IM3523 LCR meter is a high-precision instrument designed for measuring the parameters of passive electronic components, such as inductance (L), capacitance (C), and resistance (R). It is widely used in production lines and laboratory environments due to its reliability and accuracy.

Main Features of Hioki IM3523

• Wide frequency measurement range: from 40 Hz to 200 kHz, allowing for the testing of various components across multiple applications.
• High measurement accuracy: base accuracy of ±0.05%, ensuring reliable results when testing components.
• Fast measurement time: only 2 ms, enhancing efficiency in production lines and reducing overall testing time.
• Built-in comparison and classification functions: enable automatic evaluation of components according to preset parameters and classification into different categories.
• Contact check function: ensures measurement reliability by detecting poor contacts or wire disconnections during testing.
• Compact and lightweight design: approximately 40% smaller in footprint and 20% lighter compared to previous models, making it easier to integrate into production lines or automated test systems.
