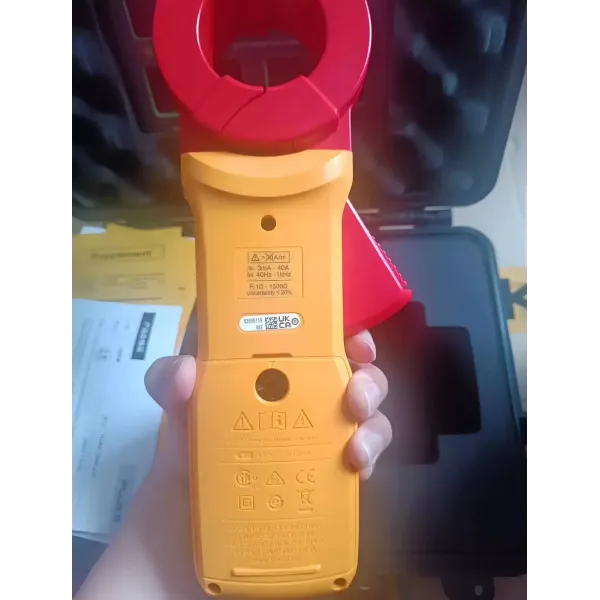

Fluke 1630-2 and 1630-2 FC Ground Resistance Clamp Meter

Fluke 1630-2 and Fluke 1630-2 FC are portable instruments designed for fast and safe ground resistance and leakage current measurements without the need to disconnect the grounding conductor. They are especially useful for working in hard-to-reach places, such as power line poles and indoor electrical installations.

Main Features

• Ground resistance measurement range: from 0.025 Ω to 1500 Ω.
• Leakage current measurement: from 0.2 mA to 1000 mA without breaking the circuit.
• Band-pass filter: eliminates noise interference during measurements, ensuring accurate results.
• Data logging memory: built-in memory can store up to 32,760 measurement results at specified intervals.
• Wireless data transfer: the Fluke 1630-2 FC model supports Fluke Connect for transferring data to mobile devices and cloud storage.
• Durable construction: high-strength clamps ensure long-lasting performance in industrial environments.

Technical Specifications

• Maximum voltage on the ground loop: 1000 V.
• Power supply: 4 alkaline 1.5V AA batteries (IEC/EN LR6).
• Battery life: over 15 hours.
• Frequency range: from 40 Hz to 1 kHz.
• Protection rating: IP30 with closed clamp.
• Operating temperature: from -10 °C to +50 °C.
• Storage temperature: from -20 °C to +60 °C.
• Operating humidity: up to 90% at temperatures between 10 °C and 30 °C, up to 75% at temperatures between 30 °C and 40 °C, up to 45% at temperatures between 40 °C and 50 °C (non-condensing).
• Operating altitude: up to 2000 m.

The Fluke 1630-2 and Fluke 1630-2 FC clamp meters are reliable tools for professionals, providing precise measurements and ease of use in various environments.
