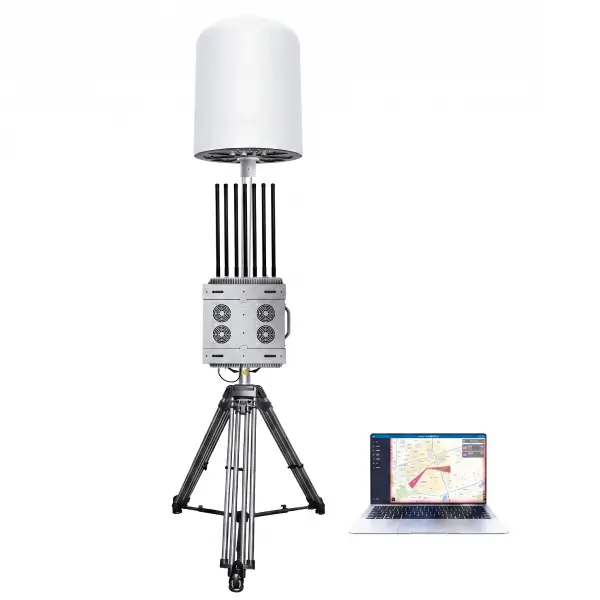

X1D / X1D-P Passive UAV Detection & Direction Finding System - 10km Intelligent Spectrum Shield

The X1D Series (including the high-performance X1D-P variant) represents a peak in passive aerial surveillance technology. Designed as an all-in-one station for detection, identification, and high-precision direction finding, this system is engineered to excel in the most challenging urban electromagnetic environments. Its passive nature ensures zero RF interference with existing infrastructure and guarantees high concealment for covert security operations.

Passive Direction Finding & TDOA Networking

The X1D series utilizes advanced Angle of Arrival (AoA) technology to provide immediate direction finding for multiple targets from a single station. When deployed in a Multi-Station Network (≥3 units), the system evolves into a high-accuracy TDOA (Time Difference of Arrival) positioning grid. This allows for precise 3D trajectory tracking and real-time visualization of incoming drone threats, providing security teams with decisive situational awareness.

Advanced Spectrum Analysis & Visual Monitoring

Equipped with a professional-grade spectrum monitoring suite, the X1D-Series provides operators with more than just alarms. Use the integrated Waterfall Chart and real-time Spectrum Charts to analyze abnormal signals and distinguish between environmental noise and tactical UAV communications. This level of visual data mining is essential for identifying customized FPV drones and homemade devices that might bypass simpler detection systems.

Key Capabilities & Evolutionary Features

• Massive Library: Covers over 400+ drone models, including the full range of DJI and Autel products, WiFi-based machines, and high-speed FPV racing drones.
• X1D-P Advanced Frequency Support: The "P" variant extends the direction-finding frequency band down to 400MHz, ensuring protection against a wider range of homemade and converted analog-link drones.
• Target Discrimination: Features an advanced Black and White List function, which effectively distinguishes cooperative (authorized) drones from non-cooperative intruders.
• Integrated Attack Linkage: Native support for integration with countermeasures or decoy equipment (GPS Spoofing), allowing for a seamless transition from detection to neutralization.
• Urban Environment Optimization: High concealment and strong anti-interference capabilities make it the premier choice for large-scale urban deployment.

Detailed Technical Specifications

The X1D Series stands as an industry benchmark for portable and fixed passive detection, providing scalable security from a single directional station to a nationwide TDOA-synchronized defense network.
