BP15M 8-12 Band Manpack Drone Jammer - 320W Enhanced Tactical System
Product Code: BP15M
All about product
Description
Reviews
0
Questions0
BP15M 8-12 Band Manpack Drone Jammer - 320W Enhanced Tactical System
Description
BP15M: Advanced High-Power Multi-Band UAV Suppression Manpack
The BP15M is an evolved tactical manpack drone countermeasure system designed for high-density electronic warfare scenarios. Building upon the success of original manpack designs, the BP15M increases the suppressive firepower to 320W across an 8-band simultaneous array. This system is specifically engineered for missions requiring long-range protection of personnel and assets in frontline or high-security urban environments. Its rugged backpack design, available in tactical black or camouflage, ensures that high-power RF disruption remains mobile and effective in any terrain.
Superior 8-Band Suppression Architecture
The core advantage of the BP15M is its intensive focus on common and emerging drone communication frequencies. While other systems may have "blind spots" in newer video transmission links, the BP15M provides triple redundancy in the 5.8GHz spectrum, ensuring that even sophisticated commercial and custom FPV drones are blinded and neutralized instantly.
- Optimized Power Distribution: Features advanced 50W modules for the most critical command bands (900MHz, 1.2G, 1.5G, 2.4G) to ensure maximum penetration through interference.
- FPV-Focused Defense: Equipped with three separate 5.8GHz modules (30W each), providing wide-spectrum disruption for high-bandwidth drone video links.
- Extended Battery Operations: Powered by a high-density 24V-28V 20Ah lithium system, the BP15M guarantees 1.5 hours of continuous tactical operation with flexible AC/DC external power support.

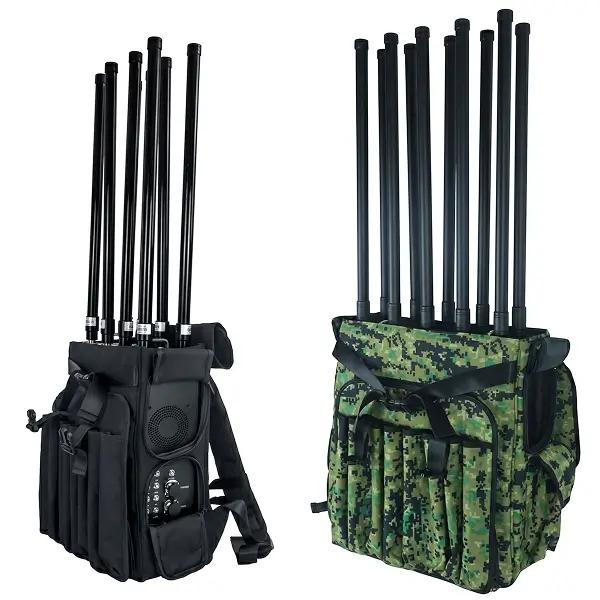

- All-Weather Tactical Housing: The 21kg unit is housed in a shock-resistant, moisture-protected manpack with reinforced attachment points for comfortable field deployment.
Frequency & Output Configuration
| Channel | Standard Target Signal | Working Frequency | Power Output (±1.5 dBm) |
|---|---|---|---|
| CH1 | 433MHz (Low-Band Control) | 428 - 438 MHz | 30 Watts (45 dBm) |
| CH2 | 900MHz (Radio/Telemetry) | 840 - 960 MHz | 50 Watts (47 dBm) |
| CH3 | 1.2G (GNSS/Video) | 1150 - 1300 MHz | 50 Watts (47 dBm) |
| CH4 | 1.5G (GPS L1 Link) | 1570 - 1620 MHz | 50 Watts (47 dBm) |
| CH5 | 2.4G (Standard Wi-Fi/Control) | 2400 - 2500 MHz | 50 Watts (47 dBm) |
| CH6 | 5.2G (UAV Video Link) | 5150 - 5300 MHz | 30 Watts (45 dBm) |
| CH7 | 5.8G (UAV Video Link - High) | 5700 - 5900 MHz | 30 Watts (45 dBm) |
| CH8 | 5.8G (UAV Video Link - Parallel) | 5700 - 5900 MHz | 30 Watts (45 dBm) |
Operational Specifications
| Total Suppression Power | 320 Watts |
| Jamming Distance | 800m - 2000m (Based on local signal strength) |
| Power Consumption | 640 Watts |
| Power Supply | AC 90-260V / DC 24-28V Dual Support |
| Internal Battery | 24V-28V, 20Ah (1.5 Hours Operation) |
| Antenna Gain | 6 - 12 dBi (Omni / Directional) |
| Unit Weight | 21 kg (Rugged Manpack) |
| Device Size | 580 x 400 x 230 mm |
Scalability and Protection
The BP15M is built for longevity and future adaptation. Each of its 8 modules operates with independent control, allowing operators to optimize battery life based on the specific threat environment. Like its predecessors, it includes industrial-grade VSWR and thermal protection, but with enhanced heat dissipation for the more powerful 320W array. The platform can be customized from 20MHz to 8000MHz to counter any specific electronic threats.
