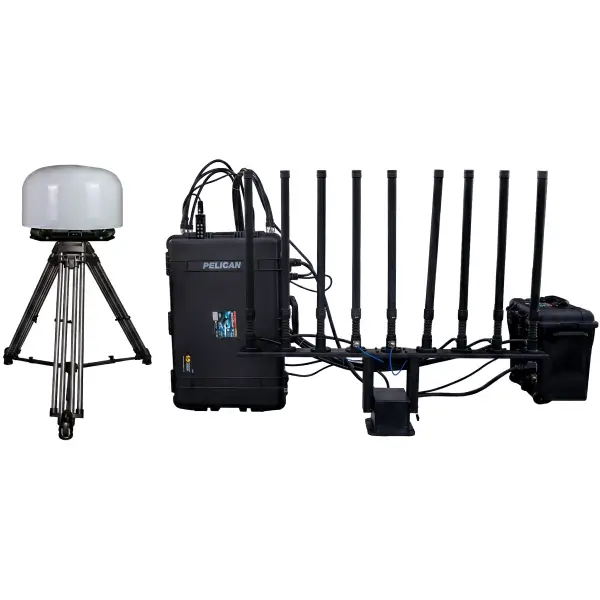

JAM12DT Integrated Vehicle-Mounted Drone Detection & Jamming System
Description
Ultimate C-UAV Protection: Detection & Neutralization
The JAM12DT represents the next generation of mobile drone defense. It is an integrated electronic countermeasure system that combines long-range RF detection with high-power signal jamming. Housed in ultra-durable military-grade Pelican cases, this system is specifically designed for vehicle-mounted operations, providing a 360° protection bubble for convoys, VIPs, and critical mobile assets.
What sets the JAM12DT apart is its Auto-Jamming Intelligence. Upon detecting a drone signal within its 1-10km surveillance radius, the system can automatically trigger its jamming sequence, forcing the threat to return to home or perform an emergency landing before it even reaches the protected perimeter.
Strategic Power Distribution
The JAM12DT delivers a total output of 590W, strategically concentrated on the most critical communication frequencies. Notably, it features high-intensity 120W modules for the 900MHz and 2.4GHz bands to overpower even the most resilient industrial and FPV drone links.
| Frequency Band | Range | Output Power |
|---|---|---|
| 433 MHz | 428 - 438 MHz | 47 dBm (50W) |
| 900 MHz (High Power) | 840 - 960 MHz | 51 dBm (120W) |
| 1.2G Navigation | 1150 - 1300 MHz | 47 dBm (50W) |
| 1.5G GPS/GLONASS | 1560 - 1610 MHz | 47 dBm (50W) |
| 2.4G (High Power) | 2400 - 2500 MHz | 51 dBm (120W) |
| 2.4G Control | 2400 - 2500 MHz | 47 dBm (50W) |
| 5.2G Video | 5150 - 5300 MHz | 47 dBm (50W) |
| 5.8G Video/Control | 5700 - 5900 MHz | 47 dBm (50W) |
| 5.8G Secondary | 5700 - 5900 MHz | 47 dBm (50W) |
System Features & Capabilities
- Dual-Mode Operation: Synchronous detection and jamming. Auto-activation mode ensures zero reaction time against fast-moving threats.
- Long-Range Warning: RF detection distance from 1km up to 10km (environment dependent), providing ample time for tactical response.
- Extended Jamming Radius: Effective neutralizing range of 0.8km to 2km with a blocking radius up to 3km.
- Vehicle-Agile Design: Fully operational while the vehicle is moving at high speeds. Requires minimal vehicle modification for deployment.
- Pelican Case Protection: The entire core system is protected by high-impact Pelican enclosures, ensuring shockproofing and weather resistance.
- Advanced Antennas: Includes 9 high-gain omnidirectional panel antennas (8-12 dBi) for complete 360-degree coverage.
- Optional GPS Spoofing: Can be upgraded with navigation spoofing modules to redirect hostile drones to a secure location.
Sophisticated Hardware Technicals
| Total Output Power | 590 Watts |
| Power Consumption | 1100 Watts |
| Antenna Configuration | 9 High-gain Omnis (600 x 32 mm) |
| Detection Range | 1-10 km |
| Cooling System | Systematic Smart Cooling (Intelligent fan control) |
| Protection Systems | Full VSWR Protection, Over-voltage Protection |
| Signal Source | Advanced Noise Sweep Technology |
| Power Source | 220V AC / 24-28V DC (Vehicle Compatible) |
| Customization Range | 20MHz - 8000MHz (Supports 1 to 12 bands) |
| System Weight | 120 kg |
