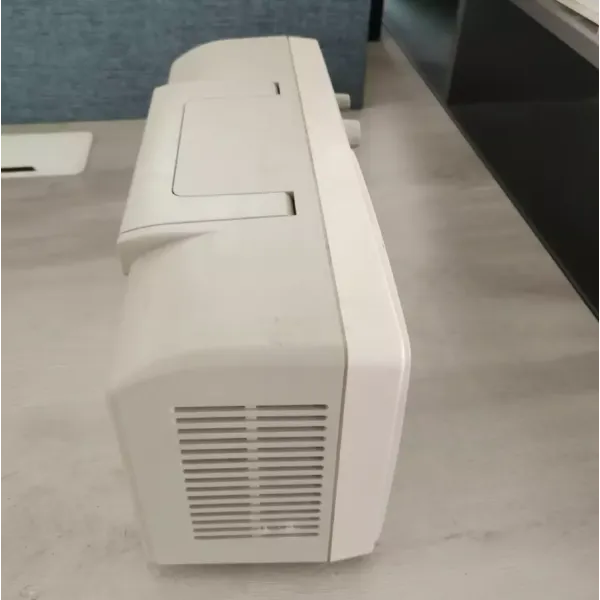

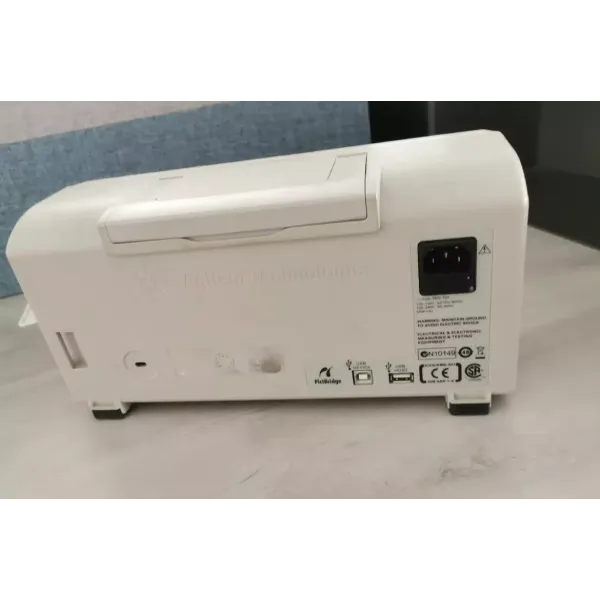

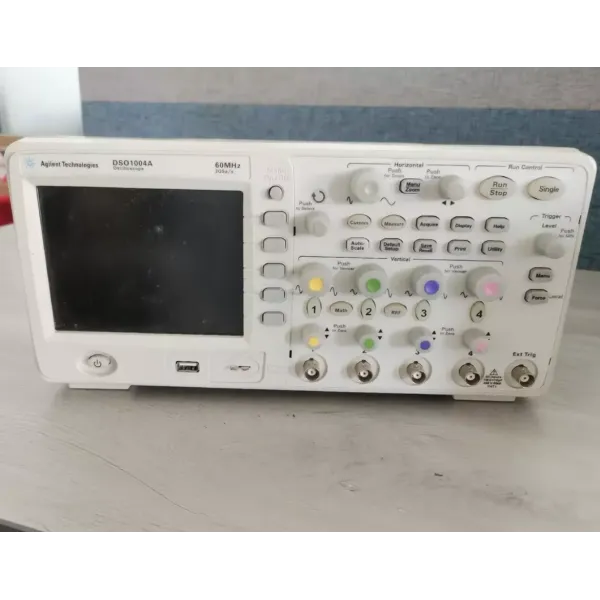

Agilent DSO1004A Digital Storage Oscilloscope

The Agilent DSO1004A is a digital storage oscilloscope from the DSO1000 series. It is designed for high-precision measurements and analysis of both analog and digital signals, making it an ideal solution for research, testing, and development in the field of electronics.

Main Specifications

• Channels: 4
• Analog Bandwidth: Up to 100 MHz
• Sampling Rate: Up to 1 GS/s (using one channel; slightly lower when all channels are active)
• Memory Depth: Standard memory depth of approximately 2.5K points (expandable options available)
• Display: Color LCD display with high readability
• Functions: Automatic measurements, math functions, FFT analysis, and advanced trigger modes
• Interfaces: USB, GPIB, and optionally LAN for remote control

Key Features

• High accuracy and stability in measurements
• Auto-range function for optimal performance with varying signal levels
• Advanced trigger modes for capturing fast-changing and non-standard signals
• User-friendly operation with an intuitive menu system

Applications

• Research laboratories and educational institutions
• Production lines and calibration laboratories
• Troubleshooting and diagnostics of electronic devices
• Analysis of high-speed digital and analog signals

The Agilent DSO1004A Digital Storage Oscilloscope is a reliable and high-performance instrument that delivers precise measurements and detailed signal analysis. Its advanced features, auto-range capability, and wide connectivity options make it an excellent choice for professionals involved in the development, testing, and maintenance of electronic equipment.
